TC-C341N 1ANA-28
TC-C341N 1ANA-28

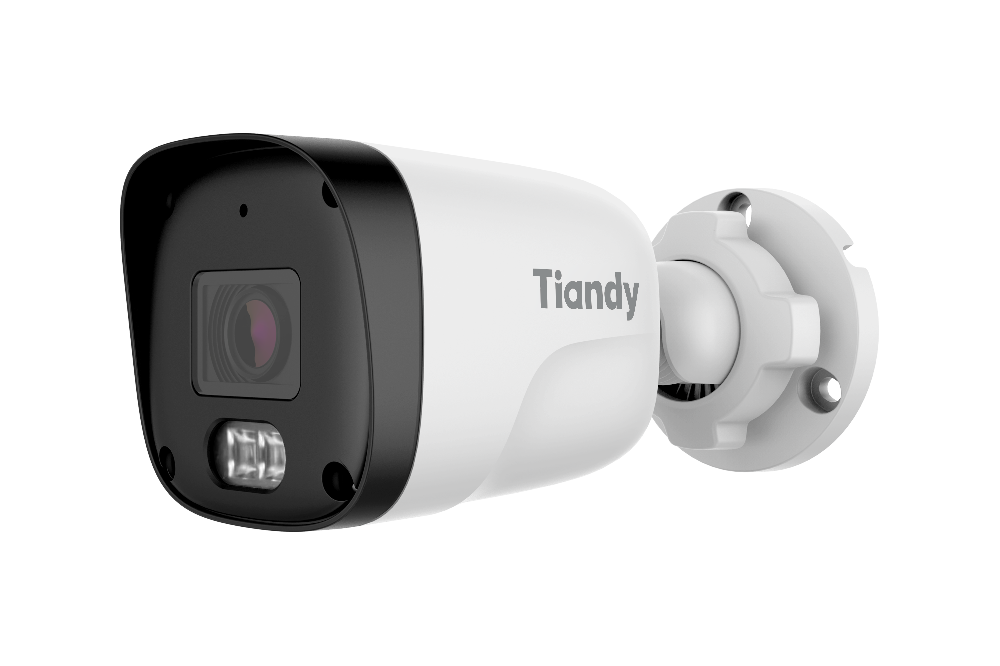

IP камера уличная цилиндрическая, 2.8мм, 4Мп, 2560×1440@30к/c, DWDR, цвет: 0.02лк, S+265, H.265, S+264, H.264(HP, MP, BP), встроенный микрофон, G.711A, только PoE 802.3af, ИК подсветка до 30м, защита IP67
Производитель: Tiandy
- Код:
- 00061877
- Бренд:
- Tiandy AK Series
- Базовая единица
- шт
- В наличии:
- 18
4 490 руб.
IP камера уличная цилиндрическая
- 2.8мм
- 4Мп, 2560×1440@30к/c
- DWDR, цвет: 0.02лк
- S+265, H.265, S+264, H.264(HP, MP, BP)
- Встроенный микрофон, G.711A
- Только PoE 802.3af
- ИК подсветка до 30м
- Защита IP67
Технические характеристики
| Camera | |
| Image Sensor | 1/3"CMOS |
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >52dB |
| Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 91.5°(H); 51.2°(V); 103.6°(D) |
| DORI Distance |
Detect:56m Observe:22.2m Recognize:11.2m Identify:5.6m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | Up to 15m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~6Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz |
| Image | |
| Max. Resolution | 4MP,2560×1440@30fps |
| Main Stream |
PAL:25fps(2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:30fps(2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Sub Stream |
PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD |
Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters; 16*16/32*32/48*48/64*64; Lattice |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| General Alarm | Motion Detection |
| Exceptions Alarm | IP Address Conflict |
| Network | |
| Protocols | RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1×Built-in Mic |
| General | |
| Web Client Language | English |
| Operating Temperature | -30℃~60℃(-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃(-22℉~140℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | PoE:IEEE 802.3af,Max. 2.5W |
| Protection | Surge4000V; ESD6000V; IP67 |
| Boundary Dimensions | 140(L)60(W)60(H)mm |
| Package Dimensions | 155(L)75(W)85(H)mm |
| GrossWeight | 0.2kg |
| NetWeight | 0.15kg |
