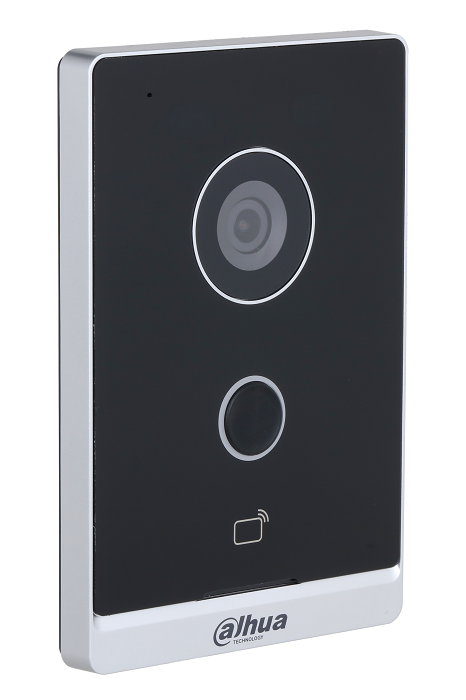

DHI-VTO2211G-P-S2
Вызывная панель с разрешением камеры 2мп и CMOS сенсором, WDR, угол обзора по горизонтали 125°, черная, уровень защиты IP65; Mifare. Слот для SD карты до 256Гб. Питание: DC 12V/PoE
Производитель: Dahua Technology
- Код:
- 00034209
- Базовая единица
- шт
14 090 руб.
IP Villa Door Station
- Thin lightweight design.
- Supports IR illumination and night vision.
- Two-way audio and voice call through app.
- Can be managed through the management platform; support voice call between App and the door station.
- Card unlock, unlock on the indoor monitor, and remote unlock through the App
- Supports IP65 (Silicone sealant is needed. For details, see the quick start guide).
- Supports 10000 cards.
- Supports standard PoE power supply.
- Controls two locks.
Технические характеристики
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Button Type | Mechanical |
| Number of Buttons | 1 |
| Interoperability | CGI; ONVIF |
| Network Protocol | UDP; TCP; IPv4; DNS; RTSP; SIP; P2P; RTP |
| Basic | |
| Camera | 1/2.8" 2 MP CMOS high definition, low illumination/WDR/color/IR |
| Field of View | H: 125°; V: 71°; D: 142° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.264; H.265 |
| Video Resolution |
Main stream: 720p, WVGA, D1, CIF Sub stream: 1080p, WVGA, D1, QVGA, CIF |
| Video Frame Rate |
PAL: 25 fps; NTSC: 30 fps |
| Video Bit Rate | 256 Kbps–8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W;Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Card; app; indoor monitor |
| Card Type | IC card |
| Auto Snapshot | Yes |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| Storage | Supports Micro SD card (up to 256 GB) |
| Web Configuration | Yes |
| Performance | |
| Card Reading Distance | 0 cm–4.3 cm (0"–1.69") |
| Issue Card Locally | Yes |
| Casing Material | PC + Acrylic |
| Capacity | |
| Card Capacity | 10000 |
| Port | |
| RS-485 | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Power Output | 1 port, 12 V and 200 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 port, normally closed by default |
| Network Port | 1 × 10/100 Mbps network port |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance Color | Black plate and silvery frames |
| Power Supply |
12 VDC, 1 A Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | CE |
| Accessory | Included: Alarm power ribbon cable, brackets |
| Product Dimensions | 150.0 mm × 100.0 mm × 25.4 mm (5.91'' × 3.94'' × 1.00'') |
| Protection | IP65 (silicone sealant is needed, see the quick start guide) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Environment | Outdoor |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Power Consumption | ≤ 1 W (standby), ≤ 7 W (working) |
| Gross Weight | 510 g (1.12 lb) |
| Anti-corrosion Level | Basic Protection |
