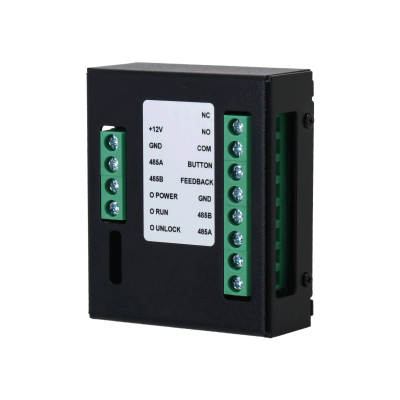

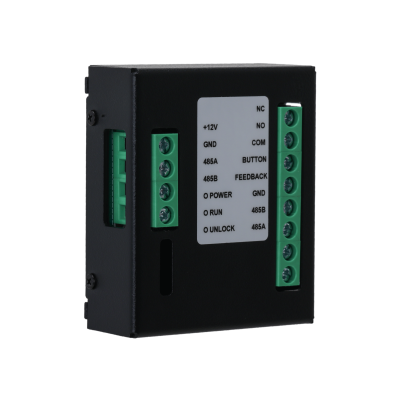

DHI-DEE1010B-S2
Модуль расширения контроля доступа; Подключение по RS-485. Работа с электромеханическими или электромагнитными замкам. 3 индикатора состояния, устройство включено или выключено и состояние двери.
Производитель: Dahua Technology
- Код:
- 00035975
- Базовая единица
- шт
4 290 руб.
Access Control Extension Module
- Used to expand access control functions by working with access control terminal and door station.
- Supports RS-485 communication.
- Connects to electronic or magnetic locks to bolster security.
- Offers 3 indicators to indicate when the device is on or off, functioning, and the status of the door.
Технические характеристики
| Port | |
| RS-485 | 2 |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| General | |
| Power Supply | 12 VDC, 1 A |
| Power Consumption | ≤ 0.9 W (standby), ≤ 1 W (working) |
| Product Dimensions | 58.2 mm × 49.2 mm × 20.2 mm (2.29" × 1.94" × 0.8") (W × H × D) |
| Operating Temperature | –10 °C to +60 °C (+14 °F to +140 °F) |
| Operating Humidity | 0%–95% (RH), non-condensing |
| Net Weight | 0.09 kg (0.20 lb) |
| Gross Weight | 0.12 kg (0.26 lb) |
| Certifications | CE; FCC |
