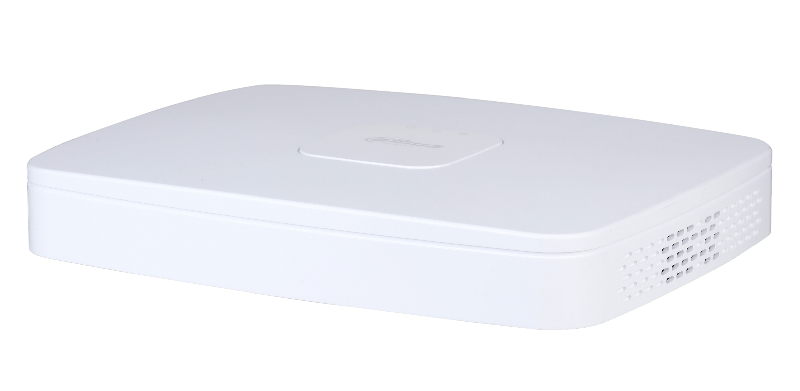

DH-XVR4104C-I
4-канальный HDCVI-видеорегистратор c SMD, HDCVI, AHD, TVI, IP, CVBS; отображение: до 1080p; запись: до 1080N@25к/с; H.265+; IP-каналы: до 5 каналов до 6Мп; 1 SATA III до 6Тбайт
Производитель: Dahua Technology
- Код:
- 00040832
- Базовая единица
- шт
10 290 руб.
- H.265+/H.265 dual-stream video compression
- Supports Full-channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 5 channels IP camera inputs, each channel up to 2MP; Max 32 Mbps incoming bandwidth
- Up to 4 channels video stream ( analog channel ) SMD Plus
Технические характеристики
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded linux |
| SMD Plus | |
| Performance | 4 channels |
| AI Search | Search by target classification (Human, Vehicle) |
| Video and Audio | |
| Analog Camera Input | 4 channels, BNC |
| HDCVI Camera Input | 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps |
| AHD Camera Input | 1080p@ 25/30 fps, 720p@ 25/30 fps |
| TVI Camera Input | 1080p@25/30 fps, 720p@25/30 fps |
| CVBS Camera Input | PAL/NTSC |
| IP Camera Input | 4+1 channels, each channel up to 2MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Recording | |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 1080N; 720p; 960H; D1; CIF |
| Record Rate |
Main Stream: 4-channel: All channels 1080N/720p/960H/D1/CIF/(1 fps–25/30 fps) Sub stream: 4-channel: CIF/(1 fps–15 fps) |
| Bit Rate | 32 kbps–6144 kbps per channel |
| Record Mode | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
| Record Interval | 1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s |
| Audio Compression | G.711A; G.711U; PCM |
| Audio Sample Rate | 8 KHz, 16 bit per channel |
| Audio Bit Rate | 64 kbps per channel |
| Display | |
| Interface | 1 HDMI; 1 VGA |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display |
When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
| OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
| Network | |
| Interface | 1 RJ-45 Port (100 Mbps) |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone; iPad; Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording; PTZ; Tour; Video Push; Email; FTP; Snapshot; Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N/A |
| Relay Output | N/A |
| Playback and Backup | |
| Playback | 1/4 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA port, up to 6 TB capacity |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 USB ports (USB 2.0) |
| RS485 | N/A |
| RS232 | N/A |
| Electrical | |
| Power Supply | DC 12V/1.5A |
| Power Consumption (Without HDD) | < 4W |
| Construction | |
| Dimensions |
Smart 1U, 204.6 mm × 210.9 mm × 45.6 mm (8.06'' × 8.30'' × 1.80'') |
| Net Weight (without HDD) | 0.47 kg (1.03lb) |
| Gross Weight | 1.04 kg (2.30 lb) |
| Installation | Desktop installation |
| Environmental | |
| Operating Conditions | -10°C to +45°C (+14°F to +113°F), 0%–90% (RH) |
| Storage Conditions | -20°C to +70°C (-4°F to +158°F), 0%–90% (RH) |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
