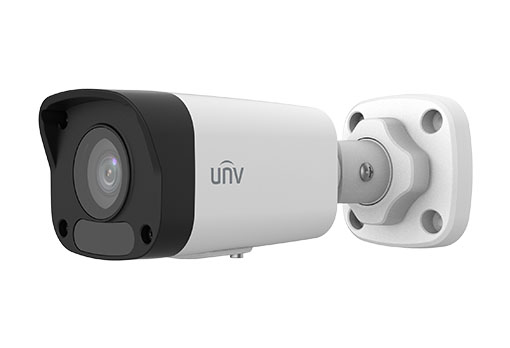

IPC2122LB-SF40K-A
Видеокамера IP цилиндрическая, 1/2.9" 2 Мп КМОП @ 30 к/с, ИК-подсветка до 30м., 0.01 Лк @F2.0, объектив 4.0 мм, DWDR, 2D/3D DNR, Ultra 265, H.265, H.264, 2 потока, детекция движения, поддержка Micro SD карт памяти до 128 Гбайт, IP67, пластик, -40~+60°C
Производитель: Uniview
- Код:
- 00048749
- Базовая единица
- шт
7 390 руб.
- High quality image with 2MP, 1/2.9"CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra H.265,H.265, H.264
- Smart IR, up to 30m (98ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- Supports Micro SD card
- DC12V or PoE(IEEE 802.3af) power supply
- IP67 protection
- 3-Axis
Технические характеристики
Camera | |
Sensor | 1/2.9", 2.0 megapixel, progressive scan, CMOS |
Min. Illumination |
Colour:0.01 lux (F2.0, AGC ON) 0 lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 ~ 1/100000s |
WDR | DWDR |
S/N | >55dB |
Lens | |
Lens type | 4mm@F2.0 |
Iris | Fixed |
Field of View (H) | 83.7 |
Field of View (V) | 44.6° |
Field of View (D) | 89.1° |
DORI | |
DORI Distance Detect (m) Observe (m) Recognize (m) Identify (m) |
64.3(210.9ft) 25.7(84.4ft) 12.9(42.2ft) 6.4(21.1ft) |
Illuminator | |
IR Range | Up to 30m (98 ft) IR range |
Wavelength | 850nm |
IR On/Off Control | Auto/Manual |
Video | |
Video Compression | Ultra H.265,H.265, H.264 |
Frame Rate |
Main Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
H.264 code profile | Baseline profile, Main profile, High profile |
Video Bit Rate | 128 Kbps~6144Kbps |
U-code | Support |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 4 areas per scene |
ROI | Up to 8 areas |
Video stream | Dual streams |
Image | |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital noise reduction | 2D/3D DNR |
Smart IR | Support |
Flip | Normal/Flip Vertical/Flip Horizontal/180° |
Dewarping | N/A |
HLC | Support |
BLC | Support |
Defog | Digital Defog |
Events | |
Basic Detection | Motion detection |
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Storage | |
Edge Storage | Micro SD, up to 128 GB |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP,RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, Qos, ,SSL/TLS |
Compatible Integration | ONVIF (Profile S, Profile T, Profile G),API,SDK |
User/Host | Up to 32 users. 2 user levels: administrator and common user |
Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF |
Client |
EZStation EZLive EZView |
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
Interface | |
Audio I/O | N/A |
Alarm I/O | N/A |
Serial Port | N/A |
Built-in Mic | N/A |
Built-in Speaker | N/A |
WIFI | N/A |
Network | 1 * RJ45 10M/100M Base-TX Ethernet |
Video Output | N/A |
Certification | |
EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
Safety |
CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
General | |
Power |
DC12V(±25%) , PoE(IEEE 802.3af) Power consumption: Max 5W |
Power Interface | Ø 5.5mm coaxial power plug |
Dimensions (L x W x H) | 161 × 62 ×63mm (6.4”× 2.4” × 2.5”) |
Weight | 0.207kg(0.46lb) |
Material | Plastic |
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Surge protection | 4KV |
Reset button | N/A |
