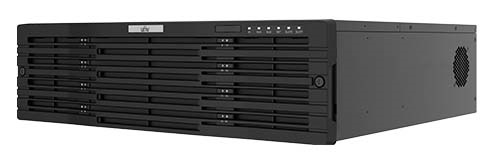

NVR516-32S
Видеорегистратор IP 32-х канальный до 12Мп.; Входящий поток на запись: до 320Мбит/с; Поддерживаемые форматы сжатия: Ultra 265/H.265/H.264; Запись: разрешение до 12Мп.; HDD: 16 до 10Тб (RAID 0, 1, 5, 6, 10),1 eSATA interface; декодирование: 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30; Видеовыходы: 2 HDMI, 1 VGA; Сеть: 2 порта 1000MB; Аудио вход/выход; Тревожный вход/выход (24/8); USB: 4 порта USB3.0; поддержка ONVIF, SDK; Поддержка: iOS, Android; Металл; Питание: 100 ~ 240 V AC
Производитель: Uniview
- Код:
- 00048872
- Базовая единица
- шт
223 990 руб.
- Support Ultra 265/H.265/H.264 video formats
- 32-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
- Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI1, HDMI2 and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
- 16 SATA HDDs, up to 16TB for each HDD
- Support 12V power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support N+1 Hot spare
- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Технические характеристики
| IP Video Input | 32-ch |
| Two-way Audio Input | 1-ch, BNC |
| Network | |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 320Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS |
| Browser |
IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Video/Audio Output | |
| HDMI/VGA Output |
VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2 (HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, BNC |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Live View Display |
VGA: 1/4/6/8/9/16/25/32 HDMI1, HDMI2: 1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | All channels snapshot, up to 4K resolution |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 |
| Hard Disk | |
| SATA | 16 SATA interfaces |
| Capacity |
Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| eSATA | 1 eSATA interface |
| Disk Group | Support |
| Disk Array Type | RAID 0/1/5/6/10/50/60 |
| Smart | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD) |
| VCA Search | Behavior Search, Vehicle Search |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP), Vehicle Detection, UMD by Camera | Total 64-ch |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 2 RJ-45 10M/100M/1000M adaptive Ethernet Interface |
| USB Interface | Rear panel: 4 x USB3.0 |
| RS232 | 1 |
| RS485 | 1 |
| Alarm In | 24-ch |
| Alarm Out | 8-ch |
| Power Output | 12V |
| General | |
| Power Supply |
100 ~ 240V AC Power Consumption: ≤ 50 W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Chassis | 19-inch rack-mounted 3U chassis |
| Dimensions | 482mm ×478mm × 131mm (19.0"× 18.8" ×5.2") |
| Weight (without HDD) | ≤ 10 Kg (22.05 lb) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
