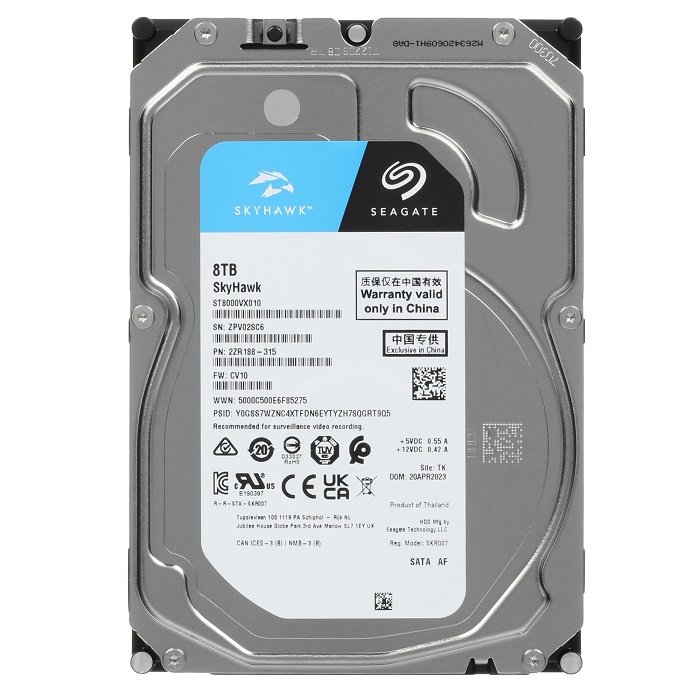

ST8000VX010
HDD 8Tb Жесткий диск SEAGATE Video Skyhawk 4KN SATA III, 3.5", (7200rpm) 256Mb
Производитель: Seagate
- Код:
- 00049436
- Базовая единица
- шт
24 468 руб.
HDD 8Tb Жесткий диск ST8000VX010 SEAGATE Video Skyhawk 4KN SATA III, 3.5", (7200rpm) 256Mb
Технические характеристики
| Formatted capacity (512 bytes/sector) | 8000GB (8TB) |
| Guaranteed sectors | 15,628,053,168 |
| Heads | 8 |
| Disks | 4 |
| Bytes per sector (emulated at 512-byte sectors) | 4096 (physical) |
| Default sectors per track | 63 |
| Default read/write heads | 16 |
| Default cylinders | 16,383 |
| Recording density | 2448 kB/in |
| Track density (avg) | 480 ktracks/in |
| Areal density (avg) | 1175 Gb/in2 |
| SATA interface transfer rate | 600 MB/s |
| Maximum data transfer rate | 180 MB/s |
| ATA data-transfer modes supported |
PIO modes: 0 to 4 Multiword DMA modes: 0 to 2 Ultra DMA modes 0 to 6 |
| Cache buffer | 256MB |
| Height | 26.1mm / 1.028 in (max) |
| Width | 101.6mm (± 0.25) / 4.0 in (± 0.010) |
| Length | 146.99mm / 5.787 in (max) |
| Weight (typical) | 630g / 1.389 lb |
| Average latency | 6.0 ms |
| Power-on to ready (typ) | 15.0s |
| Standby to ready (typ) | 15.0s |
| Startup current (typical) 12V | 1.8A |
| Voltage tolerance (including noise) |
5V ±5% 12V ±10% |
| Non-Operating (Ambient °C) | –40° to 70° |
| Operating ambient temperature (min °C) # | 0° |
| Operating temperature (drive reported max °C) | 65† |
| Temperature gradient |
20°C per hour max (operating) 30°C per hour max (non-operating) |
| Relative humidity |
5% to 90% (operating) 5% to 95% (non-operating) |
| Relative humidity gradient (max) | 30% per hour |
| Wet bulb temperature (max) |
30°C max (operating) 40°C max (non-operating) |
| Altitude, operating | (–1000 ft to 10,000 ft) –304m to 3048m |
| Altitude, non-operating (below mean sea level, max) |
–304m to12,192m (–1000 ft to 40,000+ ft) |
| Operational shock (max) | 80 Gs (read) / 70 Gs (write) at 2ms |
| Non-operational shock (max) | 300 Gs at 2ms |
| Vibration, operating |
10Hz to 22Hz: 0.25 Gs, Limited displacement 22Hz to 350Hz: 0.50 Gs 350Hz to 500Hz: 0.25 Gs |
| Vibration, non-operating |
5Hz to 22Hz: 3.0 Gs 22Hz to 350Hz: 3.0 Gs 350Hz to 500Hz: 3.0 Gs |
| Drive acoustics, sound power | |
| Idle |
2.6 bels (typical) 2.7 bels (max) |
| Seek |
2.8 bels (typical) 2.9 bels (max) |
| Non-recoverable read errors | 1 per 1014 bits read |
| Rated workload |
Average annualized workload rating: <180TB/year. The specifications for the product assumes the I/O workload does not exceed the average annualized workload rate limit of 180TB/year. Workloads exceeding the annualized rate may degrade and impact reliability as experienced by the particular application. The average annualized workload rate limit is in units of TB per calendar year. |
| Load/unload cycles (at 25°C, 50% rel. humidity) | 600,000 |
| Supports hotplug operation per the Serial ATA Revision 3.3 specification | Yes |
