DHI-VTO3311Q-WP
Вызывная WIFI панель с разрешением камеры 2мп и CMOS сенсором, угол обзора по горизонтали 125°, алюминевый сплав, уровень защиты IP65, IK08. Поддержка режима "Ночь" и голосового оповещения. Групповые вызовы. С четырьмя кнопками. Видео и аудио сообщения. Удаленный доступ через мобильное приложение DMSS. Установка на стену. Питание: DC 12V, PoE(802.3af)
Производитель: Dahua Technology
- Код:
- 00049801
- Базовая единица
- шт
19 690 руб.

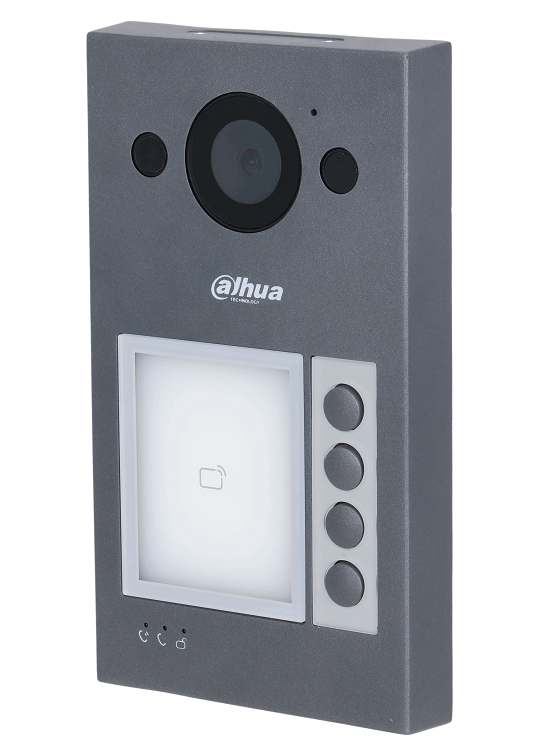

IP & Wi-Fi Villa Door Station
- Full metal casing design.
- Customizable Number of Buttons.
- Wi-Fi connection.
- 1/2.8" 2-MP HD CMOS camera.
- Offers two–way video call with indoor monitors.
- IR illumination and auto WDR.
- Supports two locks.
- Voice call and unlocking through app.
- IK08 and IP65 rated.
- H.264 and H.265.
- Unlock with IC card.
- PoE power supply.
- Included rain cover.
- Optional red-brown or dark blue front cover.
Технические характеристики
| System | |
| Main Processor | Embedded Processor |
| Button Type | Mechanical |
| Interoperability | ONVIF; CGI |
| Network Protocol | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
| Basic | |
| Camera | 1/2.8" CMOS 2-MP HD camera |
| Field of View | H: 125°; V: 65°; D: 139° |
| WDR | 120 dB |
| Noise Reduction | 3D NR; 2D NR |
| Video Compression | H.264; H.265 |
| Video Resolution |
Main stream: 720p, WVGA, D1, and CIF; Sub stream: 1080p, WVGA, D1, QVGA, and CIF |
| Video Frame Rate |
PAL: 25 fps NTSC: 30 fps |
| Video Bit Rate | 768 kbps–8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto (ICR)/Color/B/W; Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Card; app; indoor monitor |
| Card Type | IC card |
| Auto Snapshot | Yes (SD card is inserted in the indoor monitor or door station) |
| Leave Videos | Yes (SD card inserted in VTH/VTO is needed) |
| Web Configuration | Yes |
| Wi-Fi | Yes |
| Wireless Standard | IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Storage | Micro SD card (max. 256 GB) |
| Performance | |
| Card Reading Distance | 0 cm–3.5 cm (0"–1.38") |
| Issue Card Locally | Yes |
| Casing | Alluminum alloy |
| Port | |
| RS-485 | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Power Output | 1 |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | 1 × RJ-45 10/100 Mbps Ethernet port |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance color | Grey |
| Power Supply | 12 VDC, 1 A; Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | CE; FCC |
| Accessory | Included: Alarm power ribbon cable, rain cover |
| Product Dimensions | 188.1 mm × 107.2 mm × 30 mm (7.41" × 4.22" × 1.18") |
| Protection | IP65 IK08 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.51 ft) |
| Power Consumption | ≤ 3 W (standby), ≤ 6 W (working) |
| Gross Weight | 0.81 kg (1.79 lb) |
| Net Weight | 0.55 kg (1.21 lb) |
