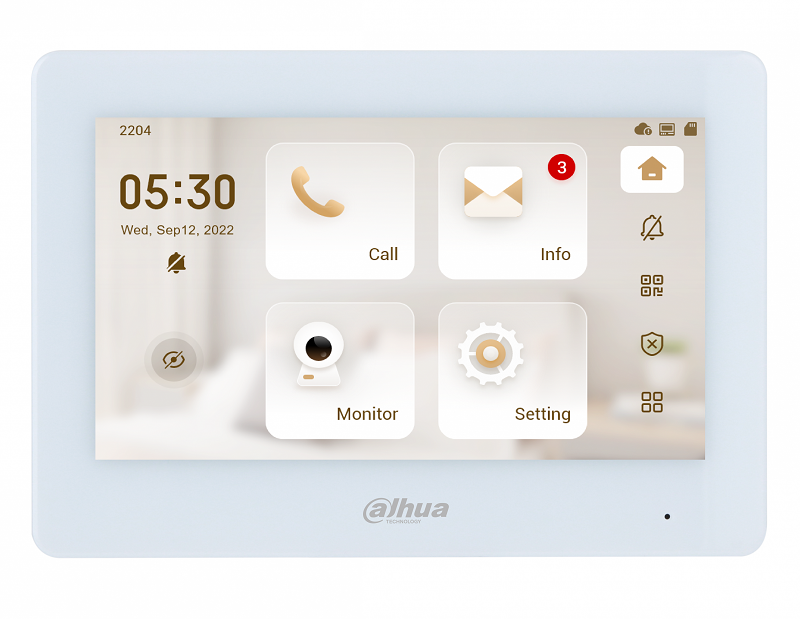

DHI-VTH5421HW-W
Монитор видеодомофона IP 7-и дюймовый с WiFi 2.4ГГц, белый 1024x600 разрешение, ёмкостной сенсорный экран; тревожные входы / выходы 6/1; LAN; поддержка micro-SD до 64Гб; Возможность просмотра IP видеокамер; DC 12В; 189х130х27мм; Установка - на стену.
Производитель: Dahua Technology
- Код:
- 00049807
- Базовая единица
- шт
16 690 руб.
IP & Wi-Fi Indoor Monitor
- 7" TFT capacitive touchscreen, 1024 × 600
- 6-channel alarm input and 1-channel alarm output
- Wi-Fi
- Door station and IPC monitor
- H.265 and H.264 video decoding
- High performance & cost-effective
Технические характеристики
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system |
| Interoperability | ONVIF; SDK |
| Network Protocol | RTSP; RTP; SIP; DNS; SSH |
| Basic | |
| Screen Type | Capacitive touchscreen |
| Display | 7" TFT |
| Screen Resolution | 1024 × 600 |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | 2-way Audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16 kHz; 16 Bit |
| Function | |
| Communication Mode | Full digital |
| Information Release | Receive and view text information released by the management center |
| Leave Videos | Yes (insert an SD card into the indoor monitor) |
| DND Mode | Do not disturb period can be set; Do not disturb mode |
| Number of Extensions |
Villa: 9 Apartment: 4 Wi-Fi intercom: 1 main monitor, 2 extension monitors |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2,412–2,472 MHz |
| Storage | Micro SD card (up to 64 GB) |
| Wireless Security Encryption | WPA/WPA2; WPA-PSK/WPA2-PSK |
| Performance | |
| Casing | PC + ABS |

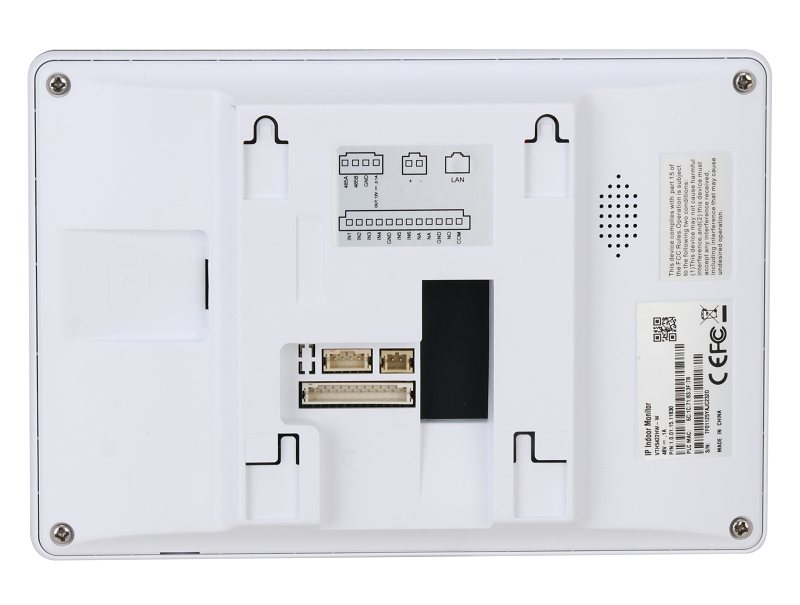

| Port | |
| RS485 | 1 |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Power Output | 1 (12 V/200 mA) |
| Door Bell | Yes (use any alarm input port) |
| Network | One 10 /100 Mbps Ethernet |
| General | |
| Appearance Color | White |
| Power Supply |
12 VDC 1 A Standard PoE (36–57 V, 0.35 A) |
| Installation | Surface mount |
| Certifications | CE; FCC |
| Dimensions | 189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to 131 °F) |
| Operating Humidity | 10%-95% RH (non-condensing) |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Power Consumption | Standby ≤ 2 W; working ≤ 6 W |
| Net Weight | 0.35 kg (0.78 lb) |
| Gross Weight | 0.56 kg (1.23 lb) |
