DH-HAC-HFW1200CLP-IL-A-0280B-S6
Уличная цилиндрическая HDCVI-видеокамера с интеллектуальной двойной подсветкой, 2Мп; CMOS; объектив 2.8мм; ИК-фильтр; 0.01лк@F2.0; BNC (переключаемый HDCVI/TVI/AHD/CVBS); 25к/c@2Мп; ИК-подсветка до 20м, Led-подсветка 20м; встроенный микрофон; IP67; 12В(DC); корпус: металл
Производитель: Dahua Technology
- Код:
- 00049984
- Базовая единица
- шт
3 190 руб.

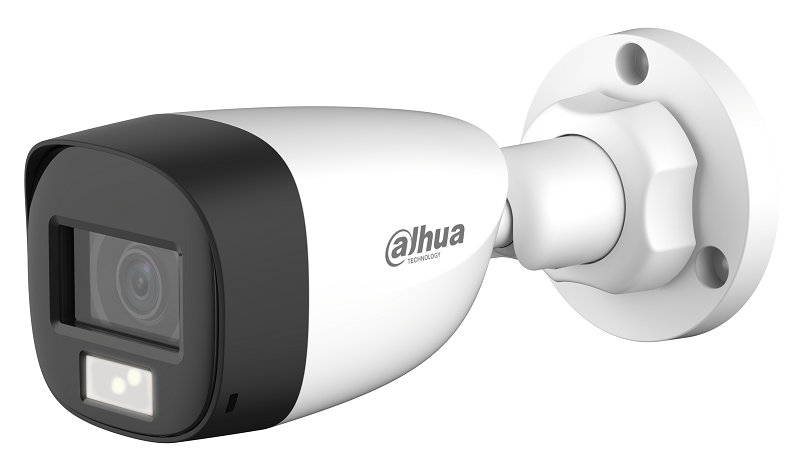

2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera
- Max. 30 fps@1080p.
- 3D NR.
- Smart Dual Light.
- 20 m illumination distance.
- Super Adapt.
- Built-in mic.
- CVI/CVBS/AHD/TVI switchable.
- IP67, 12 VDC.
Технические характеристики
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
| Min. Illumination |
0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance |
IR: 20 m (65.62 ft) Warm light: 20 m (65.62 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 2 (Warm light);2 (IR light) |
| Angle Adjustment |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; |
| Max. Aperture | F2.0 |
| Field of View |
2.8 mm: H: 102°; V: 60°; D: 129° |
| Iris Control | Fixed |
| Close Focus Distance |
2.8 mm: 0.5 m (1.64 ft) |
|
DORI Distance Lens Detect Observe Recognize Identify |
2.8 mm 41.1 m 16.5 m 8.3 m 4.1 m |
| Video | |
| Video Frame Rate |
CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto; Area white balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certification | |
| Certifications |
CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | 1 channel |
| Power | |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 2.6W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Plastic |
| Product Dimensions | 163.4 mm × 69.7 mm × 70 mm (6.43" × 2.74" × 2.76") |
| Net Weight | 0.18 kg (0.40 lb) |
| Gross Weight | 0.26 kg (0.57 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
