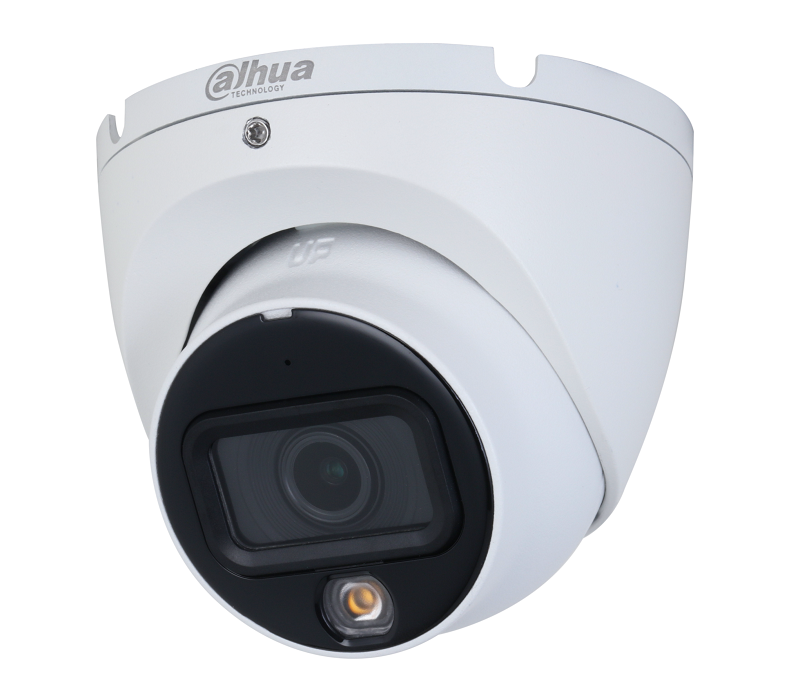

DH-HAC-HDW1500TLMP-IL-A-0280B-S2
Уличная купольная HDCVI-видеокамера с интеллектуальной двойной подсветкой, 5Мп; CMOS; объектив 2.8мм; ИК-фильтр; чувствительность 0.05лк@F1.6; BNC (переключаемый HDCVI/TVI/AHD/CVBS); 25к/c@5Мп; ИК-подсветка до 20м, Led-подсветка 20м; встроенный микрофон; IP67; 12В(DC); корпус: металл
Производитель: Dahua Technology
- Код:
- 00050010
- Базовая единица
- шт
4 690 руб.
5MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera
- Max 25 fps@5MP (16:9 video output).
- Smart Dual Light.
- 20 m illumination distance.
- Super Adapt.
- Built-in MIC.
- 3.6 mm fixed lens (2.8 mm optional).
- CVI/CVBS/AHD/TVI switchable.
- IP67, 12 VDC.
Технические характеристики
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
| Min. Illumination |
0.05 lux@F1.6 (Color, 30 IRE) 0.005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance |
IR: 20 m (65.62 ft) Warm Light: 20 m (65.62 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 1 (Warm light);1 (IR light) |
| Angle Adjustment |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; |
| Max. Aperture | F1.6 |
| Field of View |
2.8 mm: H: 106°; V: 56°; D: 125° |
| Iris Control | Fixed |
| Close Focus Distance |
2.8 mm: 0.8 m (2.62 ft) |
|
DORI Distance Lens Detect Observe Recognize Identify |
2.8 mm 56 m 22.4 m 11.2 m 5.6 m |
| Video | |
| Video Frame Rate |
CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto;Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D NR |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certification | |
| Certifications |
CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in mic |
| Power | |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 3.1 W (12 VDC, WLED on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | φ94.0 mm × 85.7 mm (φ3.70" × 3.37") |
| Net Weight | 0.31 kg (0.68 lb) |
| Gross Weight | 0.43 kg (0.95 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
