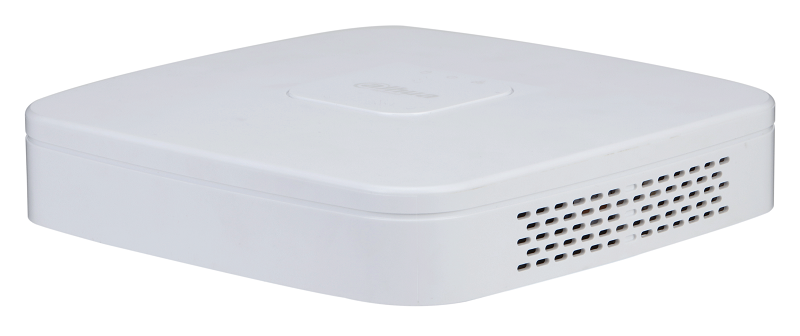

DHI-NVR4116-EI
16-канальный IP-видеорегистратор 4K, H.265+ и ИИ, Входящий поток до 256Мбит/с; сжатие: H.265+, H.265, H.264+, H.264, MJPEG; разрешение записи до 16Мп; накопители: 1 SATA III до 16Тбайт; воспроизведение: 16кн@2Mp, 2кн@16Мп; видеовыходы: 1 HDMI, 1 VGA; cеть: 1 RJ45 1000Мбит/с; aудиовх/вых: 1/1; питание: 12В(DC); видеоаналитика: 1кн детектор лиц и распознавание лиц (12лиц/с), 2кн охрана периметра, IVS, 4кн SMD Plus; видеоаналитика с камер: детектор лиц и распознавание лиц, интеллектуальный поиск
Производитель: Dahua Technology
- Код:
- 00050109
- Базовая единица
- шт
18 690 руб.
16CH Smart 1U 1HDD WizSense Network Video Recorder
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
- Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
- Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding.
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
- Connected to the third-party network cameras.
- Security baseline 2.3.
Технические характеристики
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| AI | |
| AI by Recorder | Face detection, face recognition, perimeter protection, and SMD Plus |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | 2 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | 8 channels |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 1 channel (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 8 channels |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by Recorder (Number of Channels) |
8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 8 channels |
| SMD Plus | |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 8 channels |
| Audio and Video | |
| Access Channel | 16 channels |
| Network Bandwidth |
AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
| Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
| Decoding Capability |
AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps |
| Video Output |
1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display |
1st Screen: 1/4/8/9/16 2nd Screen: 1/4/8/9/16 |
| Third-party Camera Access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE9 and later; Firefox |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm | Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |

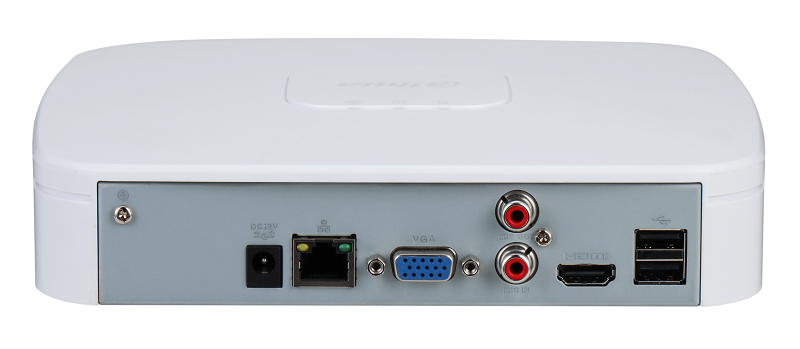

| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| HDD Interface | 1 SATA port, up to 16 TB.The maximum HDD capacity varies with environment temperature. |
| USB | 2 (2 rear USB 2.0 ports) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <10 W(without HDD) |
| Net Weight | 0.45 kg (0.99 lb) |
| Gross Weight | 1.07 kg (2.36 lb) |
| Product Dimensions | 204.6 mm × 206.4 mm × 45.6 mm (8.06" × 8.12" × 1.80") (W × L × H) |
| Packaging Dimensions | 364 mm × 96 mm × 261 mm (14.33" × 3.78" × 10.26") (W × L × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or desktop |
| Certifications |
FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
