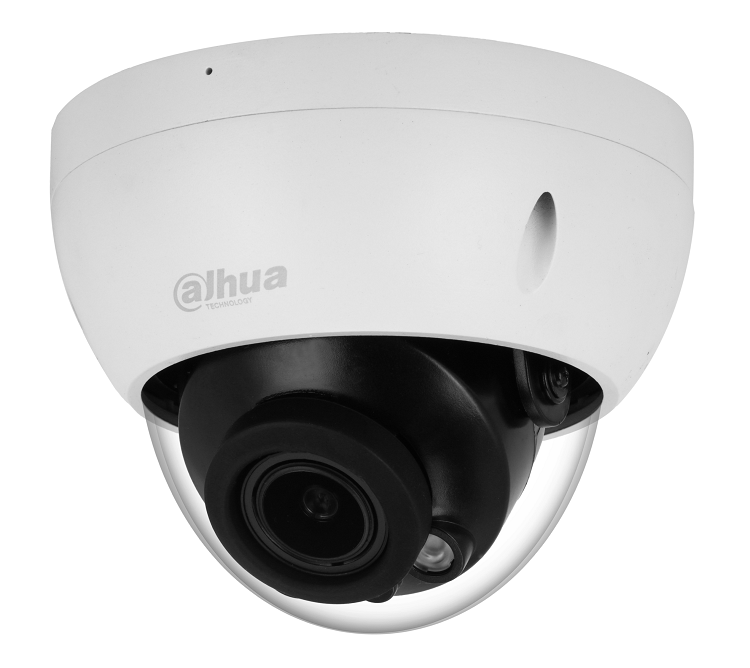

DH-IPC-HDBW2241RP-ZS
IP-видеокамеры уличные, купольные
Уличная купольная IP-видеокамера с ИИ, 2Мп; 1/2.8” CMOS; моторизованный объектив 2.7~13.5мм; механический ИК-фильтр; WDR(120дБ); чувствительность 0.002лк@F1.5; сжатие: H.265+, H.265, H.264+, H.264, MJPEG; 2 потока до 2Мп@25к/с; SMD Plus (интеллектуальный детектор движения), охрана периметра, пересечение линии, контроль зоны; ИК-подсветка до 40м; встроенный микрофон; MicroSD до 256Гбайт; защита: IP67, IK10; питание: 12В(DC), PoE; корпус: металл

DH-IPC-HDBW2241RP-ZS

Уличная купольная IP-видеокамера с ИИ, 2Мп; 1/2.8” CMOS; моторизованный объектив 2.7~13.5мм; механический ИК-фильтр; WDR(120дБ); чувствительность 0.002лк@F1.5; сжатие: H.265+, H.265, H.264+, H.264, MJPEG; 2 потока до 2Мп@25к/с; SMD Plus (интеллектуальный детектор движения), охрана периметра, пересечение линии, контроль зоны; ИК-подсветка до 40м; встроенный микрофон; MicroSD до 256Гбайт; защита: IP67, IK10; питание: 12В(DC), PoE; корпус: металл

Производитель: Dahua Technology

Код:
00051784
Базовая единица
шт
23 890 руб.
  • 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 2 MP (1920 × 1080)@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED, and the max. illumination distance is 40 m.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67 and IK10 protection.
  • SMD Plus.

Технические характеристики

Camera
Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.002 lux@F1.5 (Color, 30 IRE)
0.0002 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 40 m (131.23 ft) (IR LED)
Illuminator On/Off Control Auto; Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View H: 108°–30°;
V: 56°–17°;
D: 131°–35°
Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)
DORI Distance
Detect
Observe
Recognize
Identify
 Lens W / T
44.1 m / 144.8 m
17.7 m /57.9 m
8.8 m / 29.0 m
4.4 m / 14.5 m
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+
Smart H.264+
Video Frame Rate Main stream: 1920 × 1080@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Manual; Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a;G.711Mu; G.726; PCM
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only - ZAS supports); SMD; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Milestone
User/Host 6 (Total bandwidth: 36 M)
Storage FTP; SFTP; Micro SD card (support max. 256 GB)
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Cyber Security Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x;Trusted boot;Trusted execution; Trusted upgrade
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port) (Only - ZAS supports)
Audio Output 1 channel (RCA port) (Only - ZAS supports)
Alarm Input 1 channel in: 5mA 3V–5V DC (Only - ZAS supports)
Alarm Output 1 channel out: 300mA 12V DC (Only - ZAS supports)
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption -ZS:
Basic: 1.8 W (12 VDC); 2.6 W (PoE)
Max. (H.265+intelligence on +WDR +IR on): 6.2 W (12 VDC); 7.1 W (PoE)
-ZAS:
Basic: 1.8 W (12 VDC); 2.6 W (PoE)
Max. (H.265+intelligence on +WDR +IR on): 6.3 W (12 VDC); 7.2 W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40°F to +140°F)
Protection IP67; IK10
Structure
Casing Material Metal
Product Dimensions 93.4 mm × Φ122 mm (3.68"× Φ4.80")
Net Weight -ZS: 0.49 kg (1.08 lb)
-ZAS: 0.52 kg (1.15 lb)
Gross Weight -ZS: 0.66 kg (1.46 lb)
-ZAS: 0.68 kg(1.50 lb)
