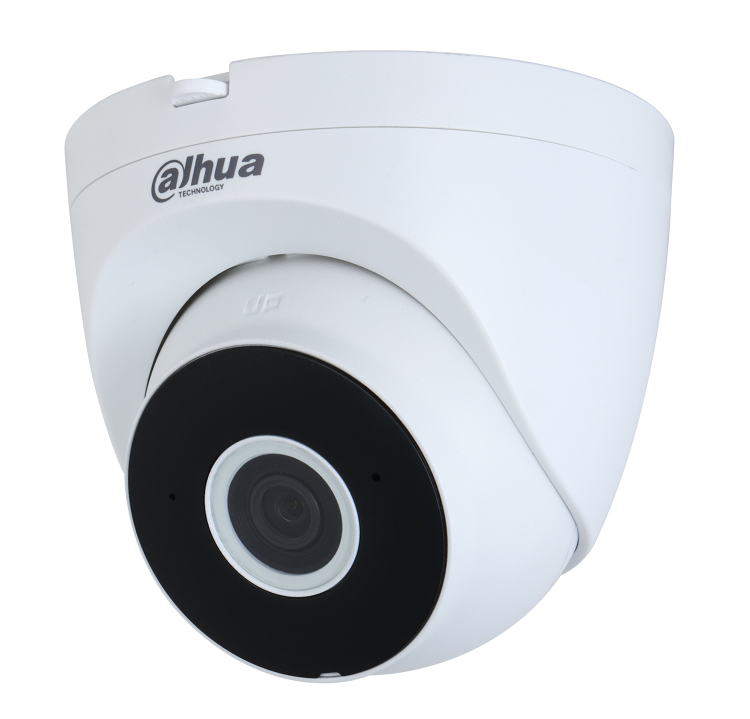

DH-IPC-HDW1230DTP-SAW-0280B
Уличная купольная IP-видеокамера с ИК-подсветкой до 30м и Wi-Fi, 2Мп; 1/2.8” CMOS; объектив 2.8мм; механический ИК-фильтр; чувствительность 0.025лк@F2.0; сжатие: H.265+, H.265, H.264+, H.264, MJPEG; 2 потока до 2Мп@25к/с; DWDR; 3D NR; BLC; обнаружение людей; Smart подсветка; встроенный микрофон; MicroSD до 256Гбайт; защита: IP67; питание: 12В(DC); корпус: металл, пластик; Wi-Fi 2.4ГГц
Производитель: Dahua Technology
- Код:
- 00051804
- Базовая единица
- шт
7 090 руб.
- 2-MP 1/3" CMOS image sensor, low luminance, and high definition image
- Outputs max. 2 MP (1920 × 1080)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED.
- SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and SMD (human).
- The antenna offers 2.4G Wi-Fi with a range of 120 m.
- Supports max. 256 G Micro SD card.Built-in MIC .
- 12 VDC power supply.
- IP67 protection.
Технические характеристики
| Camera | |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.025 lux@F2.0 (Color,30 IRE) 0.0025 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR LED) |
| Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; |
| Max. Aperture | F2.0 |
| Field of View |
2.8 mm: H: 100°; V: 53°; D: 120° |
| Iris Control | Fixed |
| Close Focus Distance |
2.8 mm: 0.6 m (1.97 ft) |
|
DORI Distance Detect Observe Recognize Identify |
Lens 2.8mm 46.9 m 18.8 m 9.4 m 4.7 m |
| Video | |
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate |
Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps) 704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate |
H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Smart Illumination | Yes |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Audio | |
| Built-in MIC | Yes |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; SMD (human) |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE802.11b/g/n 2.4–2.4835 GHz |
| Wireless Range | Up to 120m(The performance varies based on actual environment) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Network Protocol | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP |
| Interoperability | ONVIF (Profile S/Profile G); CGI; P2P |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | Micro SD card (support max. 256 GB, sold separately) |
| Browser |
IE Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications |
CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; CE-RED:Radio Equipment Directive 2014/53/EU; FCC:47 CFR FCC Part 15, Subpart B; FCC ID:FCC PART 15C |
| Power | |
| Power Supply | 12 VDC |
| Power Consumption |
Basic: 1.9 W (12 VDC) Max. (H.265 + IR intensity): 4.2 W (12 VDC) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing |
Inner core: Metal + Plastic Cover: Plastic |
| Product Dimensions | Ø109.9 mm × 102.2 mm (Ø4.33" × 4.02") |
| Net Weight | 316.9 g (0.70 lb) |
| Gross Weight | 463.0 g (1.02 lb) |
