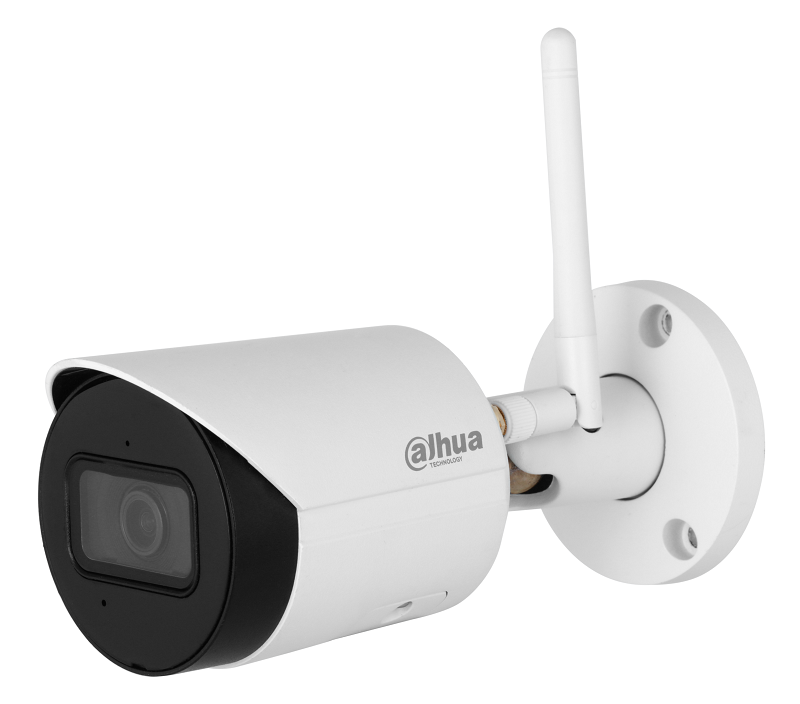

DH-IPC-HFW1430DSP-SAW-0280B
Уличная цилиндрическая IP-видеокамера с ИК-подсветкой до 30м и Wi-Fi, 4Мп; 1/3” CMOS; объектив 2.8мм; механический ИК-фильтр; чувствительность 0.03лк@F2.0; сжатие: H.265+, H.265, H.264+, H.264, MJPEG; 2 потока до 4Мп@20к/с; DWDR; 3D NR; BLC; обнаружение людей; Smart подсветка; встроенный микрофон; MicroSD до 256Гбайт; защита: IP67; питание: 12В(DC); корпус: металл; Wi-Fi 2.4ГГц
Производитель: Dahua Technology
- Код:
- 00051822
- Базовая единица
- шт
10 690 руб.
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED.
- SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
- Supports antenna 2.4G Wi-Fi, up to 80m range in open area
- Supports max. 256 G Micro SD card.Built-in MIC .
- 12 VDC power supply.
- IP67 protection.
Технические характеристики
| Camera | |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.025 lux@F2.0 (Color,30 IRE) 0.0025 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED) |
| Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; |
| Max. Aperture | F2.0 |
| Field of View |
2.8 mm: Horizontal: 90°; Vertical: 50°; Diagonal: 107° |
| Iris Control | Fixed |
| Close Focus Distance |
2.8 mm: 1.0 m (3.28 ft) |
|
DORI Distance Detect Observe Recognize Identify |
Lens 2.8 mm 68 m 27.2 m 13.6 m 6.8 m |
| Video | |
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate |
Main stream: 2560 × 1440 (1–20 fps) Sub stream: 704 × 576 (1–25 fps) 704 × 480 (1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate |
H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Audio | |
| Built-in MIC | Yes |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering;audio detection; intensity change; SMD (human) |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE802.11b/g/n 2.4~2.4835GHz |
| Wireless Range | Up to 80 m (The performance varies based on actual environment) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade |
| Network Protocol | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; |
| Interoperability | ONVIF (Profile S/Profile G); CGI; P2P |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | Micro SD card (support max. 256 GB, sold separately) |
| Browser |
IE Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C |
| Power | |
| Power Supply | 12 VDC |
| Power Consumption |
Basic: 2 W (12 VDC) Max. (H.265+IR intensity): 4.1 W (12 VDC) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions | 166.2 mm × 70.0 mm × 128.6 mm (6.53" × 2.76" × 5.06") |
| Net Weight | 477.9 g (1.05 lb) |
| Gross Weight | 696.5 g (1.50 lb) |
