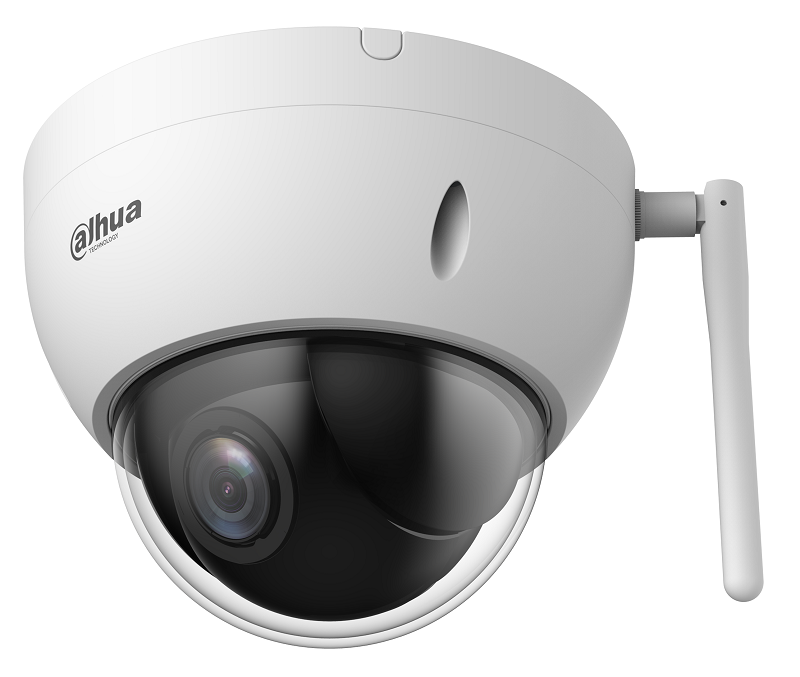

DH-SD22204DB-GNY-W
Уличная мини-PTZ IP-видеокамера с Wi-Fi 2Мп; 1/2.8” CMOS; 4x моторизованный объектив 2.8~12мм; механический ИК-фильтр; WDR(120дБ); чувствительность 0.005лк@F1.6(цвет); сжатие: H.265+, H.265, H.264+, H.264, MJPEG; 3 потока до 2Мп@25к/с; видеоаналитика: охрана периметра, SMD 3.0 (интеллектуальный детектор движения), детектор лиц; MicroSD до 512Гбайт; защита: IP66, IK10; питание: 12В(DC), PoE; корпус: металл; Wi-Fi 2.4ГГц
Производитель: Dahua Technology
- Код:
- 00053914
- Базовая единица
- шт
25 690 руб.
2MP 4x Starlight WizSense Network PTZ Camera
- 1/2.8" STARVIS™ CMOS.
- Powerful 4x optical zoom.
- Max. 25/30fps@1080P.
- Max 100°/s pan speed.
- Supports face detection.
- Support Wi-Fi.
- IP66, IK10.
- SMD 3.0.
- 6000V lightning-proof
Технические характеристики:
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination |
Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 |
| Lens | |
| Focal Length | 2.8 mm–12 mm |
| Max. Aperture | F1.6–F3.0 |
| Field of View | H: 99.1°–31.9°; V: 53.4°–18.0°; D: 117.7°–36.6° |
| Optical Zoom | 4× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Iris Control | Fixed |
|
DORI Distance Detect Observe Recognize Identify |
165.5 m (542.98 ft) 65.4 m (214.57 ft) 33.1 m (108.60 ft) 16.6 m (54.46 ft) |
| PTZ | |
| Pan/Tilt Range |
Pan: 0°–355° Tilt: 0°–90° |
| Manual Control Speed |
Pan: 0.1°/s–100°/s Tilt: 0.1°/s–60°/s |
| Preset Speed | Pan: 100°/s; Tilt: 60°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Idle Motion | Pattern; Preset; Tour |
| PTZ Protocol | SD Pelco-P/D(Auto recognition) |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection |
Supports face detection, face track, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first. |
| SMD | Yes |
| Video | |
| Video Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); VGA (640 × 480) |
| Video Frame Rate |
Main stream: 1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate |
H.264: 2048 kbps–8192 kbps H.265: 768 kbps–6400 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Yes |
| Defog | Electronic defog |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| S/N Ratio | ≥ 55 dB |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | Yes |
| Wi-Fi–Wireless Standard | 802.11n; IEEE802.11b; 802.11g |
| Wi-Fi–Wireless Frequency Range | 2.4GHz |
| Wi-Fi–Wireless Transmission Rate | 150 Mbps |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS |
| Interoperability | ONVIF(Profile S&G&T); P2P; CGI; SDK |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP; Micro SD card (512 GB); NAS |
| Browser |
IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions. |
| Management Software | DSS; DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications |
CE: CE-LVD: IEC 62368-1/ CE-EMC/EN55032/ EN61000-3-3/EN IEC61000-3-2/EN50130-4/EN55035 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
| Port | |
| Alarm Linkage | Capture; preset; tour; pattern; recordings; alarm digital input; send email |
| Alarm Event | Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Power | |
| Power Supply | 12 VDC, 1 A ± 10% |
| Power Consumption |
Basic: 2.7 W Max.: 4.8 W |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | ≤ 95% |
| Protection | IP66, IK10 |
| Structure | |
| Product Dimensions | 89 mm × Φ122 mm (3.50" × Φ4.80") |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 0.7 kg (1.54 lb) |
