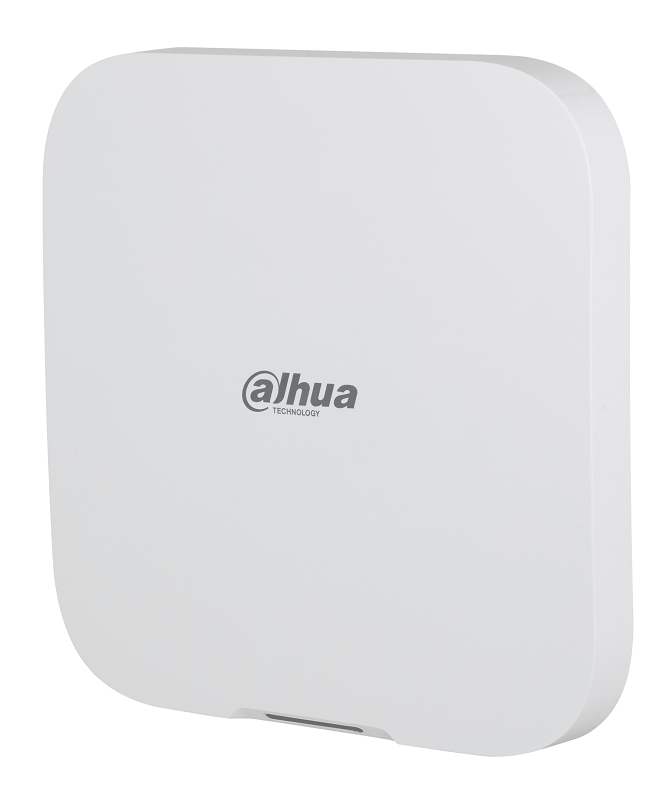

DHI-ARC3800H-W2(868)
Контроллер охранной сигнализации До 150 периферийных устройств (включая до 6 сирен, 4 ретранслятора, 64 брелока, 150 извещателей) Двусторонняя связь и алгоритм шифрования AES128 обеспечивают стабильность и безопасность связи. Ethernet, Wi-Fi 2.4Ггц. Поддержка приложений DMSS, COS Pro. Прием уведомлений в реальном времени, управление устройствами и многое другое.
Производитель: Dahua Technology
- Код:
- 00055209
- Базовая единица
- шт
13 690 руб.
Wireless Alarm Hub 2
- Supports alarm video verification through integration of the IPC with the hub.
- Images can be remotely and quickly transferred from the PIR-Cam to the device.
- Supports wired and AP network configuration methods, which makes it easier to add the hub to apps and to switch to the hub's network.
- Supports multi-network redundancy for Ethernet and Wi-Fi to ensure the network remains stable and reliable.
- Supports two-way communication and frequency hopping to make communication with wireless peripherals stable and reliable.
- Features cloud update. You can also remotely update the device and wireless peripherals on the mobile app.
- Offers a dual backup system, and uses auto recovery when an update fails.
Технические характеристики
| Port | |
| Wireless Zone | 150 channels wireless peripherals (6 sirens, 64 PIR cameras(only 8 indoor PIR cameras), 64 keyfobs, 8 keypads and 4 repeaters) |
| Network Mode | Ethernet and Wi-Fi |
| Network Port | 1 RJ-45, 10 Mbps/100 Mbps Ethernet port. |
| Storage Battery | One built-in 4,750 mah rechargeable lithium battery. |
| Video & Audio | |
| Video Input | 8-ch IPC, which only supports the upload of alarm videos. |
| Audio Output | 1 channel |
| Volume Control | Yes |
| Voice Broadcast | Local speaker |
| Function | |
| Indicator Light | The indicator indicates the status of alarms, arming and disarming, the network connection and device failure. |
| Button | Includes a reset button, voltage button and AP switch button. |
| Video Linkage | Yes |
| Offline Cache | Stores up to 50 alarm messages. |
| Arm and Disarm | App, keyboard, remote control, card, scheduled arming and disarming. |
| Remote Update | Cloud update |
| Low Battery Detection | Yes |
| Tamper | Yes |
| User Management | 33 app users (31 general users, 1 admin user and 1 installer) and 32 keypad users |
| Logs | Up to 5, 000 entries |
| Transmission Protocol | SIA, SoftGuard |
| Wireless | |
| Carrier Frequency | 868.0–868.6 MHz |
| Transmitter Power (EIRP) | Limit 25 mW |
| Communication Mechanism | Two-way |
| Communication Distance | Up to 2,000 m (6,561.68 ft) in an open space. |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
| General | |
| Language | English |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Standby Time | The battery lasts up to 12 hours when it is fully charged and is within the following conditions: It is connected to the Wi-Fi, its ID is connected to the alarm receiving center, the heartbeat interval is 1,800 seconds, and it is connected to 8 peripherals and the cloud. |
| Power Consumption | ≤12 W |
| Operating Temperature |
When battery is not charging: –10 °C to +55 °C (+14 °F to +131 °F) When battery is charging : 0 °C to +45 °C (+32°F to +113 °F) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 174.8 mm × 174.8 mm × 38.3 mm (6.88” × 6.88” × 1.51”) (L × W × H) |
| Net Weight | 510 g (1.12 lb) |
| Gross Weight | 860 g (1.90 lb) |

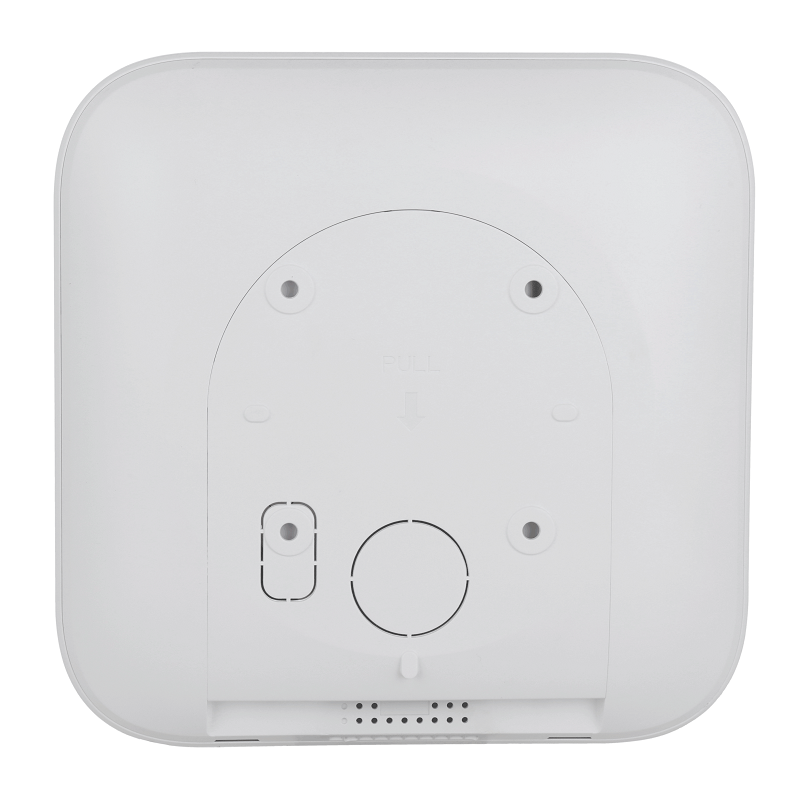

| Installation | Supports wall mount and desktop mount installation. |
| Casing Material | PC + ABS |
| Certifications | CE |
| Anti-corrosion Level | Basic Protection |
| Storage Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Humidity | 10%–90% (RH) |
| Packaging Dimensions |
254 mm × 211 mm × 61 mm (10.00” × 8.31” × 2.40”) (L × W × H), standalone in the inner box 524 mm × 508 mm × 442 mm (20.63” × 20.00” × 17.40“) (L × W × H), protective case |
| Wi-Fi | |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Wi-Fi Frequency Range | 2400-2483.5 MHz |
| Wi-Fi Power Transmission | ≤20 dBm@2400-2483.5 MHz |
