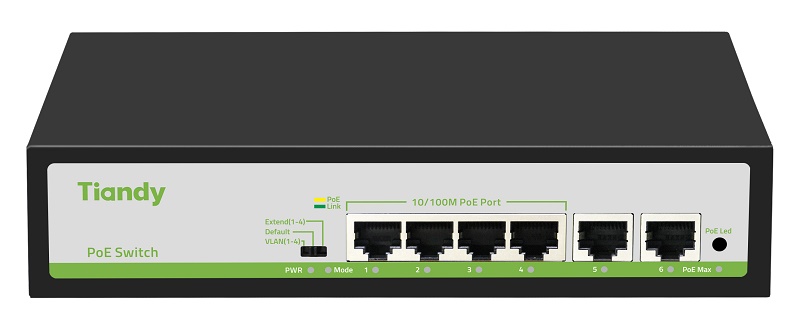

TC-P3S06 Spec:F/0420/AT/55
Неуправляемый РоЕ коммутатор, 6 портов (4 РоЕ RJ-45 х100Мбит/с + 2 Uplink RJ-45 х100Мбит/с); РоЕ IEEE802.3af/at до 30Вт/порт; РоЕ бюджет 55Вт; Поддержка VLAN, PoE Watchdog, PoE Priority (1-4 порты), Extend режим 220м (1-4 порты); AC 100-240В; -10~50℃; 245х190х60мм; Вес: 0.88 кг.
Производитель: Tiandy
- Код:
- 00055439
- Артикул
- 1A.20010.020136
- Базовая единица
- шт
4 290 руб.
- 4*10/100Mbps PoE Ports + 2*10/100Mbps RJ45 Uplink Ports
- Comply with IEEE 802.3、IEEE 802.3u、IEEE802.3xs standard
- Ethernet port supports 10/100Mbps adaptive
- Support POE Priority(QOS)：1>2>3>4(The port in front has higher priority)
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts back pressure standard
- Support Port Auto-flip（Auto MDI/MDIX）
- Adopting store-and-forward switching mechanism
- Panel indicator monitoring status and help failure analysis
- With three gears and one key intelligent dip switch， support VLAN、Default、Extend three modes
- Support port lightning surge: common mode 4KV (level C); Electrostatic ESD: air 8KV, contact 6KV (level C)
Технические характеристики
|
I/O Interface |
|
| Power | AC INPUT (100-240V) |
| Ethernet | 4*10/100Mbps PoE Ports ,2*10/100Mbps RJ45 Uplink Ports |
|
Performance |
|
| Bandwidth | 1.2 Gbps |
| Throughput | 0.8928Mpps |
| Packet Buffer | 448K |
| MAC Address | 1K |
| Transfer Mode | Store and forward |
|
Standard |
|
| Network Protocol |
EEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3x (Flow control) |
| PoE Protocol |
IEEE802.3af (15.4W) IEEE802.3at (30W) POE port output voltage: DC 52V POE power supply core: 1/2+; 3/6- |
| Industrial Standard | EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) |
| Network Medium |
10Base-T: Cat3, 4, 5 or above UTP/STP (≤100m) 100Base-TX: Cat5 or above UTP/STP (≤100m) |
|
Function |
|
| LED Indicators | PWR (Power Supply), Mode (DIP), 1-6 Green (Link & Data), POE Max (Power) |
| PWR |
On: Powered on Off: Powered off |
| POE LED Buttons | Dual color light selection: default green (link data), switch yellow light (POE) |
|
DIP Switch |
|
| VLAN | VLAN: (Port Isolation Mode). In this mode, the PoE ports (1-4) of the switch cannot communicate with each other and can only communicate with the Uplink port (5, 6). The port AI mode (PoE Watchdog) is turned on. |
| Default | Default: (Normal Mode). All Ports can communicate with each other, the transmission rate is 10/100Mbps adaptive; The port AI mode is disabled |
| Extend | Extend: (Link Extension Mode). 1-4 ports force 10M, link 220M. The port AI mode (PoE Watchdog) is turned on. |
|
Environment |
|
| Working Environment |
Working Temperature: -10~50℃ Storage Temperature: -40~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Physical Specifications |
|

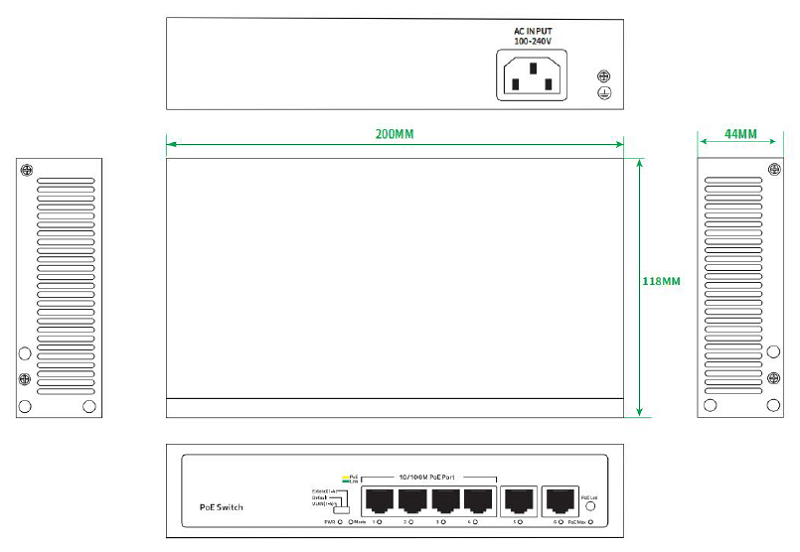

| Dimension |
Product Dimensions: 200*118*44mm Package Dimensions: 245*190*60mm Product N.W: 0.54KG Product G.W: 0.88KG |
| Packing Info |
Carton Dimensions: 520*320*400mm Packing Quantity: 20PCS Packing Weight: 18.6KG |
| Power Voltage |
Input Voltage: AC 100-240V Power Supply: 52V /1.25A |
| Power |
Mainboard power: maximum 10W POE power: maximum 55W |
