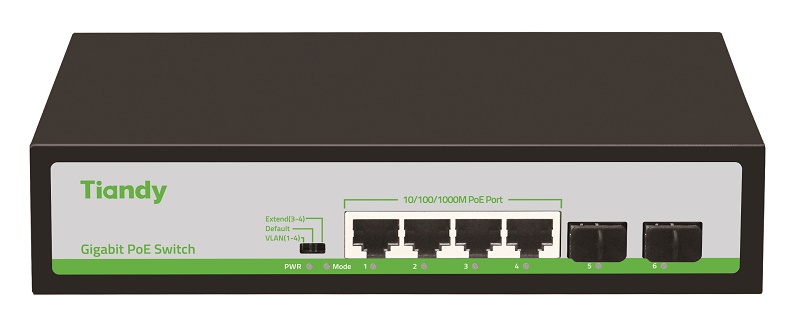

TC-P3S06 Spec:H/0402/AT/60
Сетевые Коммутаторы с PoE
Неуправляемый РоЕ коммутатор, 6 портов (4 РоЕ RJ-45 х1Гбит/с + 2 Uplink SFP х1Гбит/с); РоЕ IEEE802.3af/at до 30Вт/порт, 1й порт до 40Вт; РоЕ бюджет 60Вт; Поддержка VLAN, PoE Watchdog, Extend режим 220м (3-4 порты); AC 100-240В; -10~50℃; 245х190х60мм, вес: 0.97 кг.

TC-P3S06 Spec:H/0402/AT/60

Неуправляемый РоЕ коммутатор, 6 портов (4 РоЕ RJ-45 х1Гбит/с + 2 Uplink SFP х1Гбит/с); РоЕ IEEE802.3af/at до 30Вт/порт, 1й порт до 40Вт; РоЕ бюджет 60Вт; Поддержка VLAN, PoE Watchdog, Extend режим 220м (3-4 порты); AC 100-240В; -10~50℃; 245х190х60мм, вес: 0.97 кг.

Производитель: Tiandy

Код:
00055441
Артикул
1A.20010.020137
Базовая единица
шт
7 190 руб.
  • 4*10/100/1000M PoE ports +2*1000M SFP Port
  • Comply with IEEE 802.3, IEEE 802.3u,IEEE802.3ab, IEEE802.3z standards
  • Ethernet port 10/100/1000M rate auto adaptive
  • Compatible with IEEE802.3af (15.4w),IEEE802.3at (30W);
  • Port 1 support BT 40W;
  • Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
  • Support Port Auto-flip (Auto MDI/MDIX）
  • Panel indicators to monitor working status and help fault analysis n One-key smart switch, supports VLAN,Default , Extend

Технические характеристики

I/O Interface
Power AC INPUT (100-240V)
Ethernet 4 Port 10/100/1000M PoE, 2 Port 1000M SFP
Performance
Bandwidth 12 Gbps
Throughput 8.928Mpps
Packet Buffer 1Mbit
MAC Address 2K
Transfer Mode Store and forward
Standard
Network Protocol IEEE802.3
IEEE802.3u
IEEE802.3ab
IEEE802.3z
IEEE802.3x
PoE Protocol IEEE802.3af (15.4W)
IEEE802.3at (30W)
POE port output voltage: DC 52V
POE power supply core: 1/2+; 3/6
Industrial Standard EMS: EN61000-4-2 (ESD)、 EN61000-4-5 (Surge
Network Medium 10BASE-T: Cat 3、4、5 UTP (≤100   meter)
100BASE-TX: Cat5 or more UTP (≤100 meter)
1000Base-TX: Cat5 or more UTP/STP (≤100 meter)
Function
LED Indicators PWR (power supply), Mode   (DIP), 1-6(Link & Data)
PWR On: Powered on
Off: Powered off
POE LED Buttons Dual color light   selection: default green (link data), switch yellow light (POE)
DIP Switch
VLAN Port isolation mode. In this mode,   the PoE ports (1-4) of the switch cannot communicate with each other and can   only communicate with the UP-link port.
Default Normal mode, all port can   communicate with each other, the transmission distance is within 100 meters,   the transmission rate is 10M / 100/1000M adaptive;
Extend Link extension mode, 3-4 ports PoE   power supply and data transmission distance can be extended to 220 meters,   the transmission rate becomes 10M
Environment
Working Environment Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity:10%~90%, non-condensing
Storage Temperature:5%~95%, non-condensing
Physical Specifications
Dimension Product Dimension:   200*118*44.5mm
Package Dimension: 245*190*60mm
N.W:0.67kg
G.W:0.97kg
Packing Info Carton MEAS:520*320*400mm
Packing Qty:20 units
Packing Weight:20.4KG
Power Voltage Input Voltage: AC 100-240 V
Power supply:52V /1.25A
Power Product power: maximum 5W
POE power: maximum 60W
