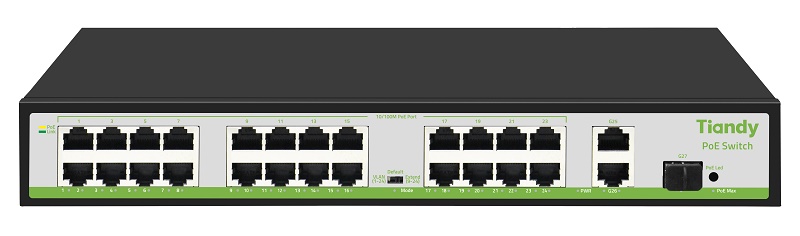

TC-P3S027 Spec:H/2421/AT/260
Неуправляемый РоЕ коммутатор, 27 портов (24 РоЕ RJ-45 х100Мбит/с + 2 Uplink RJ-45 х1Гбит/с + 1 Uplink SFP х1Гбит/с); РоЕ IEEE802.3af/at до 30Вт/порт; РоЕ бюджет 260Вт; Поддержка VLAN, PoE Watchdog, PoE Priority (9-24 порты), Extend режим 220м (9-24 порты); AC 100-240В; -10~50℃; 370х290х85мм, вес: 2.32 кг.
Производитель: Tiandy
- Код:
- 00055446
- Артикул
- 1A.20010.020143
- Базовая единица
- шт
25 990 руб.
- 24*10/100M POE ports + 2* 1000M Ethernet Uplink ports +1*1000M SFP Port;
- Comply with IEEE 802.3, IEEE802.3u,IEEE802.3ab, IEEE802.3z standards;
- Ethernet port 10/100M rate auto adaptive;
- PoE port is in Extend mode, and ports 9-24 force 10M to automatically turn on AI mode;
- Supports POE priority, in order from 9 to 24 ports, enabled by default;
- Flow control method: IEEE 802.3x standard is used for full duplex, and Back pressure standard is used for half duplex;
- Zero configuration feature, automatically supplied to adaptive devices;
- Monitor the working status of the panel indicator light and assist in fault analysis;
- It is equipped with a three gear one key intelligent Dip switch, which supports VLAN, Default and Extend modes;
- Support port lightning surge: common mode 4KV, differential mode 2KV; Electrostatic ESD: air 8KV, contact 6KV. (level B)
Технические характеристики
|
I/O Interface |
|
| Power | AC INPUT (100-240 V) |
| Ethernet | 24 Port 10/100M PoE, 2 Port 1000M Ethernet Uplink,1 Port 1000M SFP |
|
Performance |
|
| Bandwidth | 10.8Gbps |
| Throughput | 8.03Mpps |
| Packet Buffer | 3Mbit |
| MAC Address | 2K |
| Transfer Mode | Store and forward |
|
Standard |
|
| Network Protocol |
IEEE802.3(Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow control) IEEE 802.3z (Gigabit Ethernet fiber optic standard) |
| PoE Protocol |
IEEE802.3af (15.4W) IEEE802.3at (30W) POE port output voltage: DC 52V POE power supply core: 1/2+; 3/6- |
| Industrial Standard | EMS: EN61000-4-2 (ESD)、 IEN61000-4-5 (Surge) |
| Network Medium |
10BASE-T: Cat 3、4、5 UTP (≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000Base-TX: Cat5 or more UTP/STP (≤100 meter) |
| Optical Medium | Multimode fiber: 50/125、62.5/125、100/140um Single mode fiber: 8/125、8.7/125、9/125、10/125um |
|
Function |
|
| LED Indicators | PWR (Power indication), Mode (Dial indicator),1-19Green (Link & Data), POE Max (Power display) |
| PWR |
On: Powered on Off: Powered off |
| POE LED Buttons | Dual color light selection: default green (link data), switch yellow light (POE) |
|
Environment |
|
| Working Environment |
Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity :10%~90%, non-condensing Storage Temperature:5%~95%, non-condensing |
|
Physical Specifications |
|

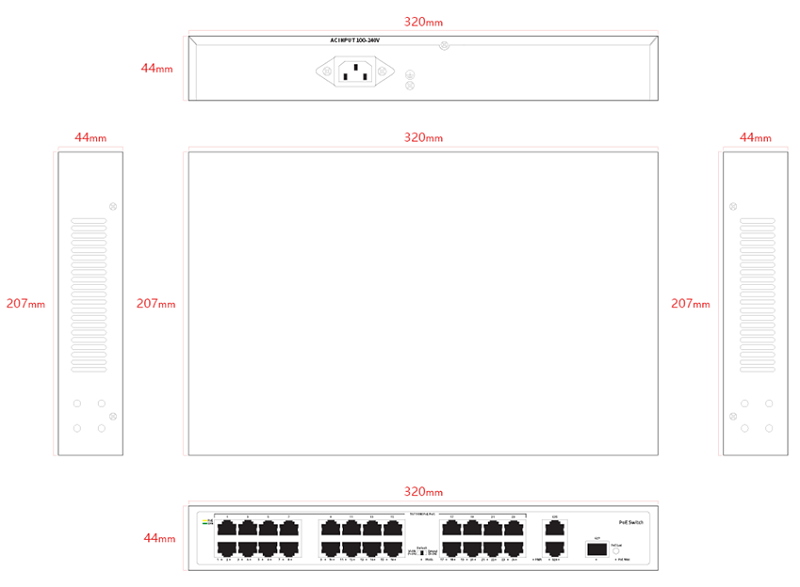

| Dimension |
Product Dimension (L*W*H): 320*207*45mm Package Dimension (L*W*H): 370*290*85mm N.W:1.79KG G.W:2.32KG |
| Packing Info |
Carton MEAS:445*310*390mm Packing Qty:5 set Packing Weight:12.6KG |
| Power Voltage |
Input Voltage: AC 100-240 V 50-60Hz Power supply:52V /5.38A |
| Power |
Non POE board power: maximum 7W POE power: maximum 260W |
