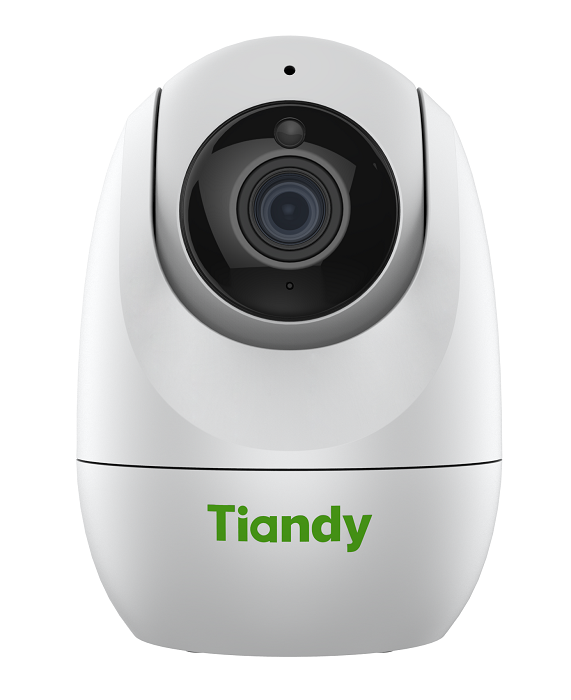

TC-H332N 9DA-4
Компактная поворотная домашняя IP камера с WiFi, 3Мп, 2304×1296@20к/c, DWDR, цвет: 0.05лк, S+265, H.265(HP), S+264, H.264(HP, MP, BP), объектив 4мм, встроенные микрофон и динамик, G.711A, G.711U 8кГц, 16кГц , встроенный в корпус, 1×RJ-45 (10/100 Base-T), WiFi IEEE 802.11b/g/n, 2.4 ГГц - 2.4835 ГГц, только DC5В±5% USB type-C, адаптивная ИК подсветка до 15м + белая подсветка до 10м, защита нет, современный WEB интерфейс без плагинов, слот для microSD
Производитель: Tiandy
- Код:
- 00055449
- Базовая единица
- шт
4 290 руб.
Компактная поворотная домашняя IP камера с WiFi, 3Мп, 2304×1296@20к/c
- DWDR, цвет: 0.05лк
- объектив 4мм
- встроенные микрофон и динамик
- WiFi IEEE 802.11b/g/n, 2.4 ГГц - 2.4835 ГГц
- только DC5В±5% USB type-C
- адаптивная ИК подсветка до 15м + белая подсветка до 10м
- современный WEB интерфейс без плагинов
- слот для microSD
Технические характеристики
| Camera | |
| Image Sensor | 1/3"CMOS |
| Min. Illumination | Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto Switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >38dB |
| Angle Adjustment | 0-350°; -25-90° |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F2.0 |
| Aperture Type | Fixed |
| Field of View | 51°(H); 26.3°(V); 60.3°(D) |
| DORI Distance | Detect:59.3m Observe:23.5m Recognize:11.9m Identify:5.9m |
| Pan&Tilt | |
| Pan Speed | 45°/s |
| Tilt Speed | 30°/s |
| Preset | 255 |
| Illuminator | |
| IR LEDs | 4 |
| IR Distance | Up to 15m |
| Wavelength | 850nm |
| White LEDs | 1 |
| Whitelight Distance | 10m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
| Image | |
| Max. Resolution | 3MP,2304×1296@20fps |
| Main Stream | PAL: 20fps(2304×1296, 1920×1080, 1280×720, 704×576) NTSC: 20fps(2304×1296, 1920×1080, 1280×720, 704×480) |
| Sub Stream | PAL:20fps(704×576, 704×288, 352×288, 640×360) NTSC:20fps(704×480, 704×240, 352×240, 640×360) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48; Lattice |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| Exceptions Alarm | Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict |
| Linkage Method | Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
| Video Analytics | Smart Alarm |
| Auto-Tracking | Yes |
| Network | |
| Protocols | RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast; FTP |
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Wi-Fi | |
| Transmission Distance | Up tp 30m( based on actual environment) |
| Wireless Standard | IEEE802.11b/ 802.11g/802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz |
| Wi-Fi Security | WPA-PSK/WPA2-PSK |
| Interface | |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1×Built-in Mic |
| Built-in Speaker | 1×Built-in Loudspeaker |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 256GB |
| General | |
| Web Client Language | 3languages Simple Chinese/English/Tiếng Việt |
| Operating Temperature | -10℃-45℃(14℉~113℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -10℃-45℃(14℉~113℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | DC5V±5% USB type-C,Max.5W |
| Protection | Surge500V; ESD6000V |

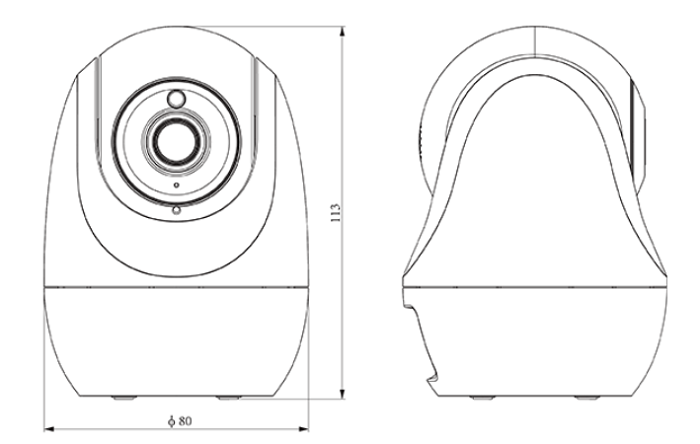

| Boundary Dimensions | 80(L)80(W)113(H)mm |
| Package Dimensions | 97(L)97(W)165(H)mm |
| GrossWeight | 0.36kg |
