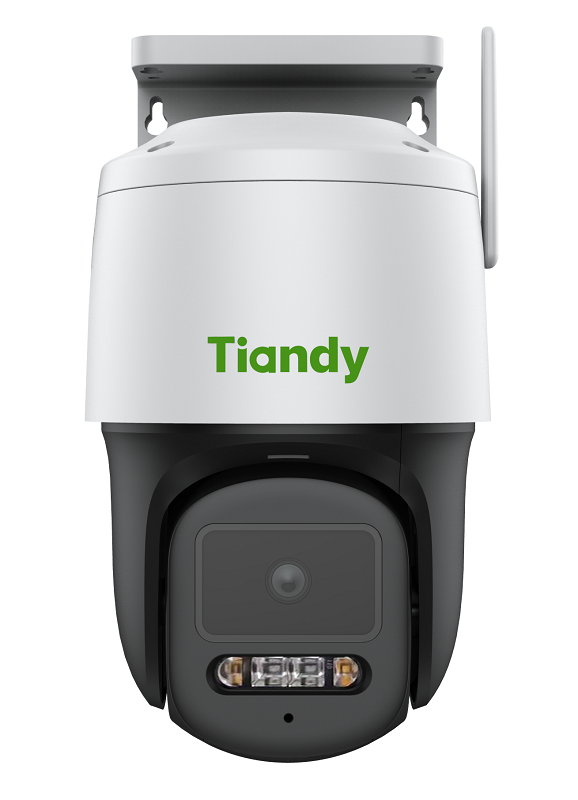

TC-H334S Spec:I5W/C/WIFI/Eu/4mm/V4.1
Компактная поворотная уличная IP камера, 3Мп, 2304×1296@25к/c, DWDR, цвет: 0.02лк, S+265, H.265 (HP), S+264, H.264 (HP, MP, BP), объектив 4мм, встроенные микрофон и динамик, G.711A, G.711U 8кГц, 16кГц , только DC12В±25%, адаптивная ИК подсветка до 50м + белая подсветка до 15м, защита IP66, современный WEB интерфейс без плагинов, слот для microSD
Производитель: Tiandy
- Код:
- 00055457
- Артикул
- 1D.20010.022047
- Базовая единица
- шт
9 990 руб.
- Разрешение 3MP 2304×1296@25fps
- Матрица 1/2.8"CMOS
- Color:0.02Lux.
- Объектив 4мм
- Кодек сжатия S+265/H.265/H.264B/H.264M/H.264H
- WI-FI IEEE802.11b/ 802.11g/802.11n
- Встроенный микрофон и динамик
- Класс защиты IP66
- Smart ИК 50м LED 15м
- Слот micro SD
Технические характеристики
|
Camera |
|
| Image Sensor | 1/2.8"CMOS |
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >38dB |
| Angle Adjustment | 0~340°(P); 15~110° |
|
Lens |
|
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 87.7°(H); 46.7°(V); 98.6°(D) |
| DORI Distance | Detect:65.3m Observe:25.9m Recognize:13.1m Identify:6.5m |
|
Illuminator |
|
| IR LEDs | 2 |
| IR Distance | Up to 50m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | 15m |
|
Compression Standard |
|
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
|
Image |
|
| Max. Resolution | 3MP,2304×1296@25fps |
| Main Stream | PAL:25fps(2304×1296, 1920×1080, 1280×720, 704×576, 640×480) NTSC:24fps(2304×1296), 30fps(1920×1080, 1280×720, 704×480, 640×480) |
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32 |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
|
Feature |
|
| Exceptions Alarm | Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict |
| Linkage Method | Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output |
| Auto-Tracking | Yes |
|
Network |
|
| ANR | Yes |
| Protocols | HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; Telnet; Unicast; FTP |
| System Compatibility | ONVIF(Profile S/T/G) ; SDK; CGI; Milestone; RTSP |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Moblie Client | EasyLive Plus |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Wi-Fi |
|
| Transmission Distance | Up tp 30m( based on actual environment) |
| Wireless Standard | IEEE802.11b/ 802.11g/802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz |
| Wi-Fi Security | WPA-PSK/WPA2-PSK |
|
Interface |
|
| Communication Interface | 1*RJ-45 (10/100 Base-T) |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 512GB |
|
General |
|
| Web Client Language | 2 languages English/Turkish |
| Operating Temperature | -30℃~60℃(-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃(-22℉~140℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | DC12V±25%,Max. 12W |
| Protection | Surge4000V; ESD6000V; IP66 |
| Boundary Dimensions | 264(L)165(W)140(H)mm |
| Package Dimensions | 185(L)155(W)285(H)mm |
| GrossWeight | 1.22kg |
