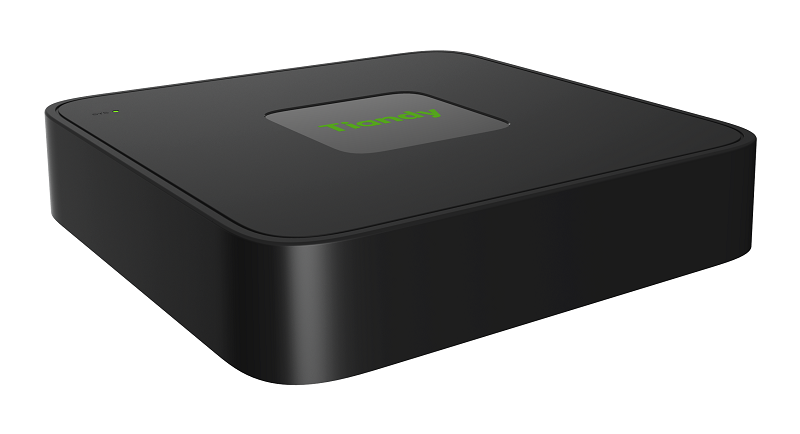

TC-R3104 Spec:I/B/P4/C/Eu/L/S/V2.0 (AK Series)
IP-видеорегистратор 4 канала, битрейт 60Мбит/с/40Мбит/с, до 6Мп, 1×SATA III 3.5'', HDD до 6Tb, однопотоковая запись, без аудио интерфейсов, без тревожных интерфейсов, 1×HDMI/1×VGA, 4×10/100BASE-T, PoE 802.3af/at, PoE бюджет 28Вт, 1×10/100BASE-T, детектор движения камер
Производитель: Tiandy
- Код:
- 00056678
- Артикул
- 1D.20030.020801
- Базовая единица
- шт
7 490 руб.
- Up to 4-ch IP camera accesses
- Incoming/Outgoing bandwidth: 60Mbps/40Mbps
- S+265, H.265, S+264, H.264 video formats
- Max. decoding capability: 5MP(30fps)×1 or 1080P(30fps)×3
- 4-ch synchronous playback
- Up to 6 TB capacity for each HDD
- Simultaneous HDMI and VGA outputs
- HDMI output at up to 1080P resolution
- 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
- PoE interface, 4×RJ45, 10/100 Mbps self-adaptive Ethernet port
- S+ 265 compression effectively reduces the storage space by up to 75%
- Support cloud upgrade
Технические характеристики
|
Video and Audio |
|
| Access Channel | 4 |
| Incoming Bandwidth | 60Mbps |
| Outgoing Bandwidth | 40Mbps |
| Resolution | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Decoding Capability | 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×4, 4CIF(30fps)×4 |
| Playback Decoding Capability | 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4, 4CIF(30fps)×4 |
| Third-party Camera Access | ONVIF; RTSP |
| HDMI Output | HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
| VGA Output | VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
| Multi-screen Display | Simultaneous Output: VGA: 1/2/3/4 HDMI: 1/2/3/4 |
|
Compression |
|
| Video | S+265; H.265; S+264; H.264 |
| Audio | G711A; G711U; ADPCM_DIV4 |
| Stream Type | Video; Video & Audio |
|
Network |
|
| Network Protocol | ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; Unicast; UPnP |
| Mobile Phone Access | Android; iOS; P2P |
| System Compatibility | CGI; SDK |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Record Playback |
|
| Multi-channel Playback | 4 |
| Record Mode | Alarm Recording; Schedule Recording |
| Storage Method | Local HDD |
| Backup | USB storage device |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital Zoom |
|
Alarm |
|
| General Alarm | Motion Detection; Mask Alarm; Alarm Input(IPC) |
| Exceptions Alarm | Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure |
|
Intelligent Analytics |
|
| AI by Camera | Smart Motion |
|
Storage |
|
| HDD Capacity | Up to 6 TB capacity for each HDD |
|
External Port |
|
| USB | 2×USB2.0 |
| HDMI | 1×HDMI |
| VGA | 1×VGA |
| Network Interface | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| SATA | 1×SATA interface |
|
PoE |
|
| PoE Interface | 4×RJ45, 10/100 Mbps self-adaptive Ethernet port |
| PoE Budget | 28W |
| Power per PoE Port | 28W |
| Standard | IEEE 802.3 af/at |
|
General |
|
| UI Language | English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German; Portuguese |
| Power Supply | DC48V 1A |
| Power Consumption | <10W(without HDD&without PoE) |
| NetWeight | 0.44kg |
| GrossWeight | 0.81kg |
| Boundary Dimensions | 200(L)200(W)43(H)mm |
| Package Dimensions | 315(L)70(W)235(H)mm |
| Operating Temperature | -10℃~+55℃ (+14℉~+131℉) |
| Operating Humidity | 10%~90%RH (non-condensing) |
| Storage Temperature | -20℃~+60℃ (-4℉~+140℉) |
| Package Kit | Network Video Recorder; Screw Pack; Mouse; European Standard Power Adapter |
