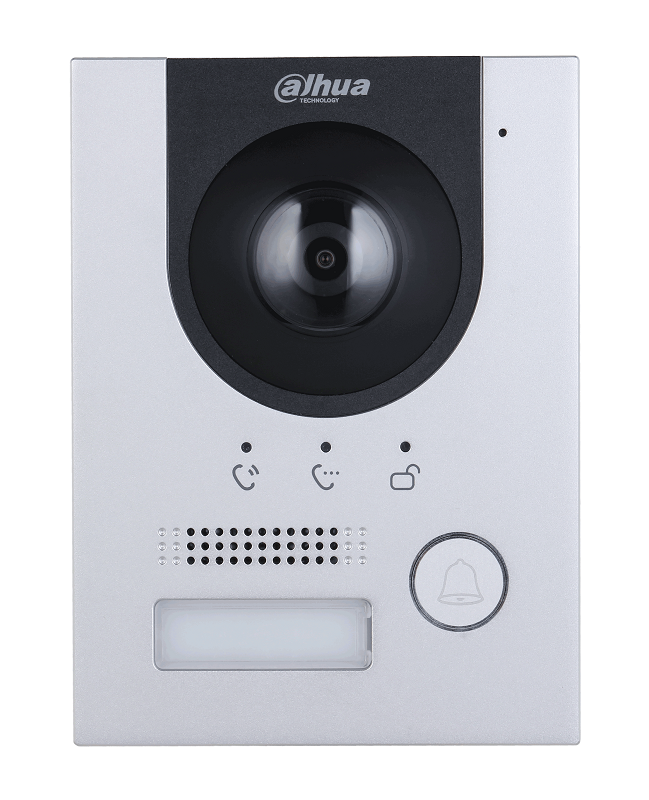

DHI-VTO2201F-P-S2
Вызывная панель с разрешением камеры 2мп и CMOS сенсором, угол 137 градусов, панель из алюминия, IP65, IK07. Групповые вызовы. Видео и аудио сообщения. Удаленный доступ через мобильное приложение DMSS. DC 12V, PoE
Производитель: Dahua Technology
- Код:
- 00057970
- Базовая единица
- шт
17 390 руб.
IP Villa Door Station
- Anodized aluminum front panel.
- CMOS low illumination 2MP HD colorful 168.6°camera.
- Video intercom function.
- Provides 12 VDC, 600 mA power.
- Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
- IK07 & IP65 rated (silicone sealant is required for the shell, see the quick start guide).
- Support surface and flush mount.
- Support H.265 and H.264.
- Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).
Технические характеристики
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux Operation System |
| Button Type | Mechanical |
| Number of Buttons | 1 |
| Interoperability | ONVIF; CGI |
| Network Protocol | IPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP |
| Basic | |
| Camera | 1/2.9" 2 MP CMOS |
| Field of View | H:168.6°; V:87.1°; D:176.7° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.265; H.264 |
| Video Resolution |
Main stream: 720p; WVGA; D1; CIF Sub stream: 1080p; WVGA; D1; QVGA; CIF |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 256 Kbps to 8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W; Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 bits |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Remote |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| Storage | Supports Micro SD card (up to 256 GB) |
| Web Configuration | Yes |
| Performance | |
| Casing Material | Aluminum |
| Port | |
| RS-485 | 1 |
| Alarm Output | 1 |
| Power Output | 1 port, 12 V/600 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | 1 × RJ-45 port, 10 Mbps/100 Mbps network port |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance Color | Silver |
| Power Supply | 12 VDC, 2 A, PoE (802.3af/at) |
| Power Adapter | Optional |
| Installation | Flush Mount; Surface Mount |
| Certifications | CE |
| Accessory | Surface mount box (optional); flush mount box (optional); rain cover (optional) |
| Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
| Protection | IK07; IP65 |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Environment | Outdoor |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.52 ft) |
| Power Consumption | ≤4 W (standby), ≤5 W (working) |
| Gross Weight | 0.48 kg (1.06 lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75% (RH), non-condensing |
