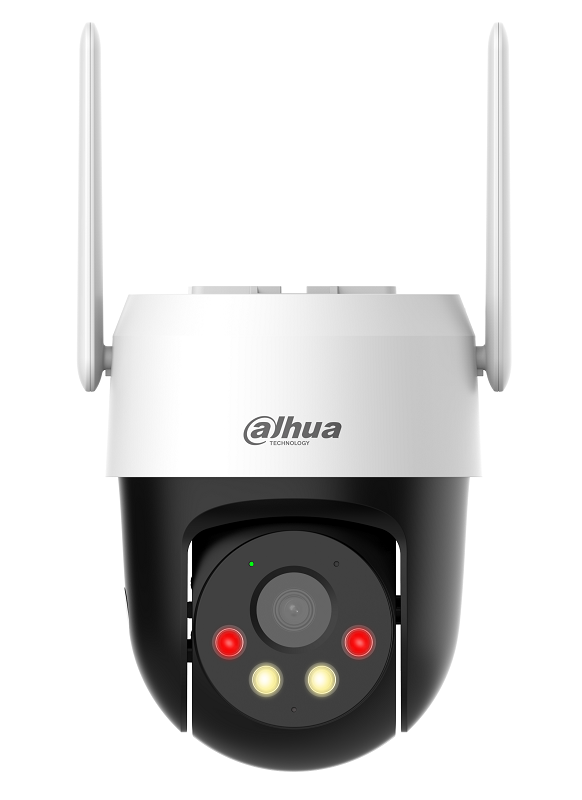

DH-P5AE-PV-4G
Уличная Мини-PT IP-видеокамера с 4G модулем, 5Мп; 1/2.8”; 4мм; ИК-фильтр; 0.05лк@F1.6; H.265+, H.265, H.264+, H.264, MJPEG; 2 потока до 5Мп@25к/с; видеоаналитика: охрана периметра, обнаружение людей + автоматическое слежение, обнаружение транспортных средств, SMD 3.0; ИК-подсветка 30м, Led-подсветка 30м; встроенные микрофон+динамик; MicroSD до 256Гбайт; защита: IP66, питание: 12В(DC)
Производитель: Dahua Technology
- Код:
- 00058918
- Базовая единица
- шт
5MP Fixed-focal 4G Pan & Tilt Network Camera
The Active Defense Series Small PT Camera delivers advanced performance and functionality. Upon detecting an intrusion, it promptly activates sound and light alarms, while simultaneously transmitting critical information to your mobile device for instant alerts. The camera also features two-way talk, enabling real-time communication with individuals on the site. Additionally, its Smart Dual Illuminator enhances visibility, allowing the camera to capture clear, full-color videos and images whether day or night, thereby providing reliable evidence of events while minimizing light pollution. Thanks to its 4G network capability, the camera also delivers continuous surveillance, even in areas with limited Wi-Fi access.
Технические характеристики
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Illumination Distance | 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR) |
| Electronic Shutter Speed | 1/25 s–1/100,000 s |
| Illuminator Number | 2 (IR light); 2 (Warm light) |
| Lens | |
| Focal Length | 4.0 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 81.27°; V: 47.73°; D: 94.41° |
| Iris Control | Fixed |
| PTZ | |
| Pan/Tilt Range |
"Pan: 0° to 345° Tilt: 0° to +90°" |
| Smart Event | |
| IVS | Tripwire and intrusion |
| Human Detection | Human detection; Auto-tracking |
| Vehicle Detection | Yes |
| Intelligence | |
| SMD | SMD 3.0 |
| Video | |
| Video Compression |
Smart H.265+;H.265;Smart H.264+; H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Video Frame Rate |
Main stream: 5M/1080p/720p/640 × 360@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) |
| Video Bit Rate | H264: 64 - 8192 kbps H265: 25 - 6400 kbps |
| Day/Night | Auto (ICR); Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 180° |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726 |
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Network | |
| Wireless Carrier Frequency Band |
EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 |
| Max. Transmission Power | 4G:Power class3:23dBm±2dB |
| Storage | Micro SD card (support max. 256 GB); |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| General | |
| Certifications | CE |
| Power Supply | 12 VDC, 1 A ± 10% |
| Power Consumption |
Basic: 3 W Max: 9 W (illuminator + PTZ) |
| Power Adapter | Included |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity | ≤95% |
| Protection |
TVS 2000 V lightning proof; surge protection; voltage transient protection; Waterproof and Dustproof |
| Camera Button | Reset button |
| Casing Material | Plastic |
| Product Dimensions | 140.5 mm × Φ111.0 mm (5.53" × Φ4.37") |
| Net Weight | 0.5 kg (1.10 lb) |
