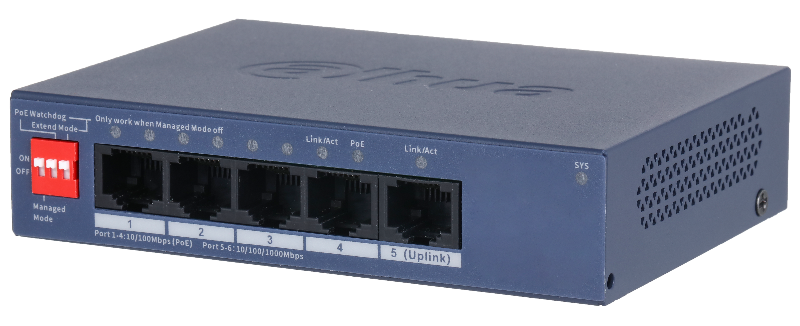

DH-CS4005-4ET1GT-36
4-портовый PoE коммутатор с функцией облачного управления, Порты: 4 RJ45 10/100Мбит/с (PoE/PoE+), 1 RJ45 10/100/1000Мбит/с (uplink); мощность PoE: порт порты 1~4 до 30Вт, суммарно до 40Вт; питание: 53В(DC);
Производитель: Dahua Technology
- Код:
- 00059114
- Базовая единица
- шт
4 290 руб.
5-Port Cloud Managed Desktop Switch with 4-Port PoE
- 4 × RJ45 10/100 Mbps PoE ports, 1 × RJ45 Gigabit ports.
- 36 W total PoE budget, 802.3af/at on all PoE ports.
- DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.
- Wide operating temperature ranging from –10 °C to 55 °C.
- Supports VLAN and loop protection.
- WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.
- Easy config to auto detect and set up network and systems.
Технические характеристики:
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 2.8 Gbps |
| Packet Forwarding Rate | 2.08 Mpps |
| Description of Function Slots |
Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External power supply: 53 VDC, 0.8 A |
| Power Consumption |
Idling: ≤3 W Full load: 42.4 W |
| Statics Protection |
Air discharge: 8 kV Contact discharge: 6 kV |
| Lightning Protection | Common mode: 6 kV |
| Net Weight | 0.2 kg (0.44 lb) |
| Gross Weight | 0.72 kg (1.59 lb) |
| Product Dimensions | 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H) |
| Packaging Dimensions | 195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| PoE | |
| PoE | Yes |
| PoE Power | Port 1-4 ≤ 30 W, total ≤ 36 W |
| PoE Protocol | IEEE802.3af; IEEE802.3at |
| PoE Power Consumption Management | PoE power consumption management; PoE power on/off; turns off PoE if overload is detected |
| PoE Pin Assignment | 1, 2, 4, 5（V+）, 3, 6, 7, 8（V-） |
| Long Distance PoE Transmission | Yes |
| Hardware | |
| DIP Switch |
Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode. PoE Watchdog: Monitors ports 1-4 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off) Extend Mode: Ports 1-4; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off) |
| Reset Button | 1 |
| Performance | |
| MTBF | 232.62 years |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 2K |
| Communication Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | IEEE 802.1Q VLAN |
| Port Feature |
IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control MAC+Port Binding Loop Prevention |
| Mirror |
N:1 Mirroring; Local Port Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation |
| Equipment Management |
Web Management Cloud Management Logs Fault Alarm |
| General | |
| Packing List |
1 × Quick Start Guide 1 × Legal and Regulatory Information 1 × Power Adapter 1 × Power Cord |
