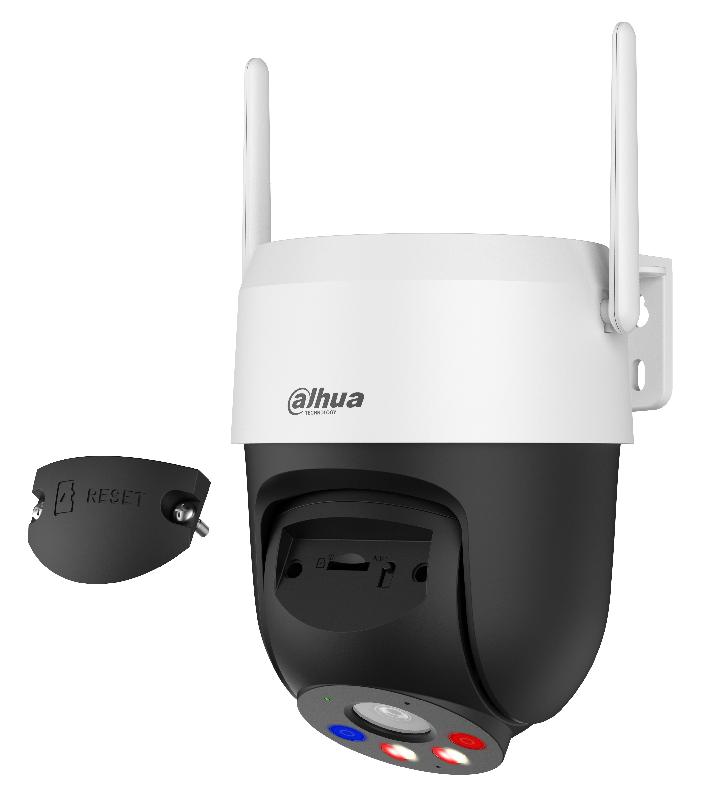

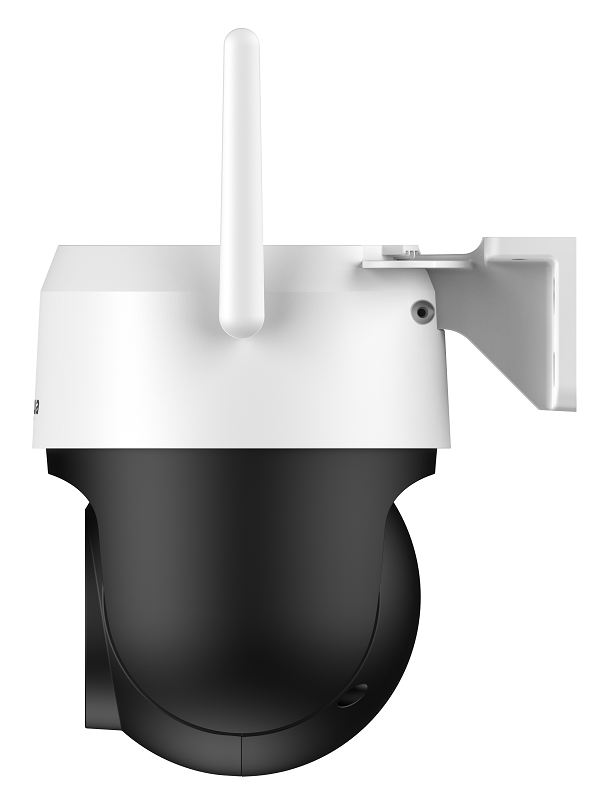

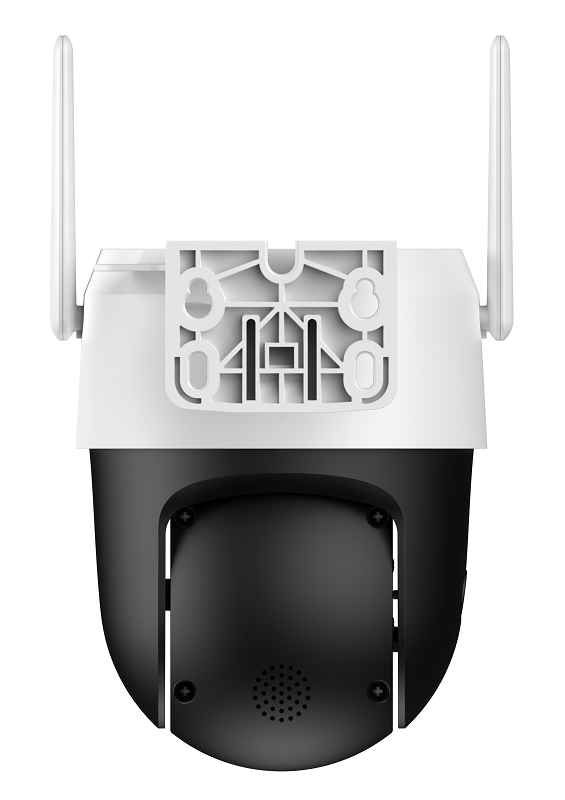

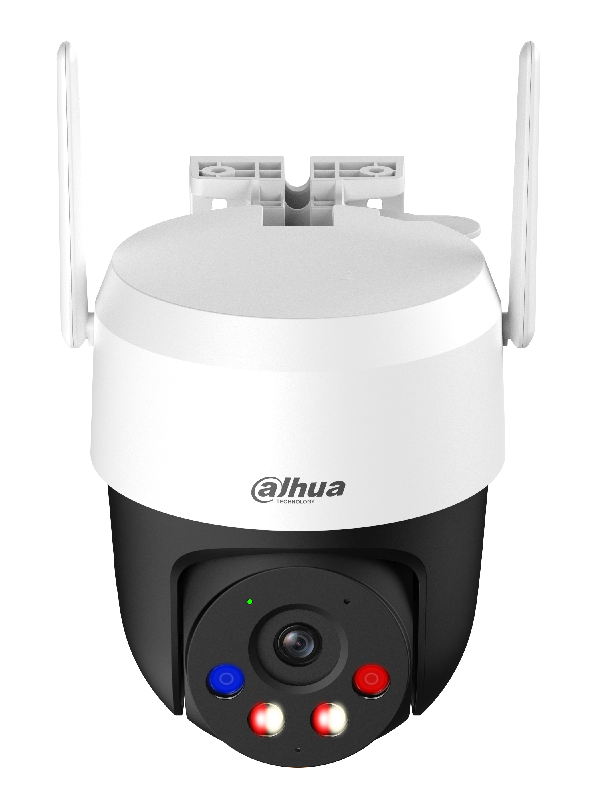

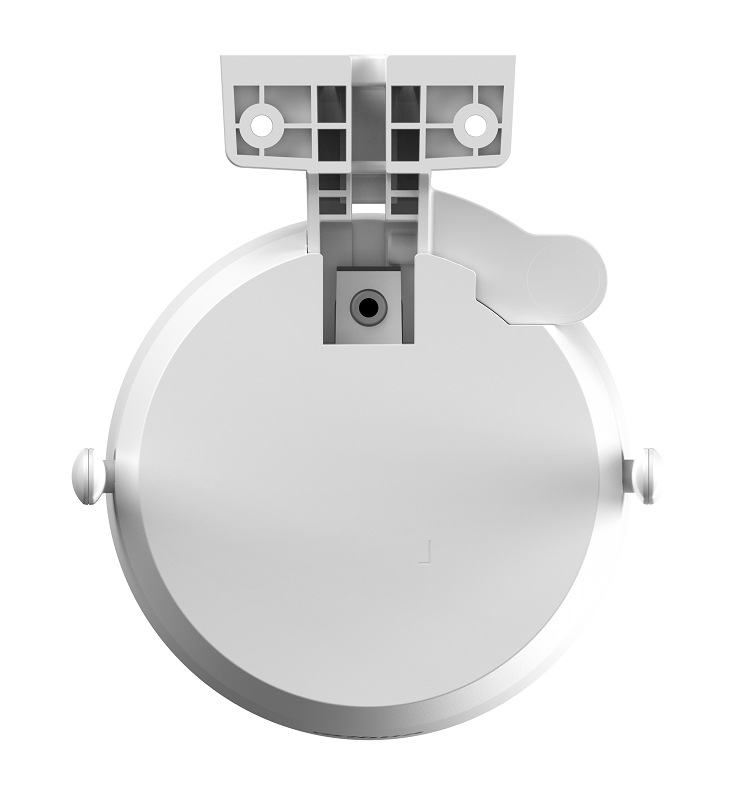

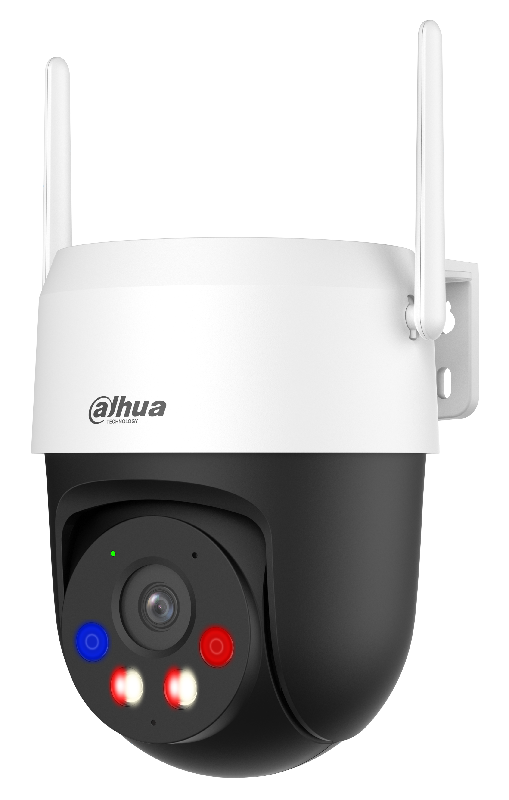

DH-P5AS-PV
Уличная Мини-PT IP-видеокамера с Wi-Fi, 5Мп; 1/2.7” CMOS; 4мм; ИК-фильтр; 0.007лк@F1.6; сжатие: H.265, H.264, MJPEG; 2 потока до 5Мп@25к/с; видеоаналитика: обнаружение людей, обнаружение транспортных средств; ИК-подсветка 30м, Led-подсветка 30м; сигнализация красно-синей подсветкой, встроенные микрофон+динамик; MicroSD до 256Гбайт; защита: IP66, питание: 12В(DC); Wi-Fi 2.4ГГц
Производитель: Dahua Technology
- Код:
- 00059262
- Базовая единица
- шт
5MP Outdoor Fixed-focal Wi-Fi Pan & Tilt Network Camera
The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. Additionally, it includes smart dual illuminators that not only reduce light pollution, but also intelligently turn on when they are triggered by an event to assist the camera with capturing clear, full-color videos.
Технические характеристики:
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Min. Illumination |
0.007 lux@F1.6 (Color, 30 IRE) 0.0007 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Angle Adjustment |
Pan: 0° to 345° Tilt: 0° to 90° Rotation: 0° to 345° |
| Lens Type | Fixed-focal |
| Focal Length | 4.0 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 78°; V: 42°; D: 92° |
| Intelligence | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Audio and Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| Video Frame Rate |
Main stream: 2880 × 1620@(1–25/30 fps) sub stream: 640 × 360@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate |
H.264: 32 kbps–6144 kbps; H.265: 32 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax 2.4 G & 5 G, EIRP≤20 dBm@2400–2483.5 MHz (CE), EIRP≤23 dBm@5150–5250 MHz (CE), EIRP≤20 dBm@5250–5350 MHz (CE), EIRP≤20 dBm@5470–5725 MHz (CE), EIRP≤14 dBm@5725–5875 MHz (CE) |
| Wi-Fi Pairing | Bluetooth pairing |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android;iOS |
| Function | |
| Abnormal Sound Alarm | Yes |
| General | |
| Certifications | CE |
| Power Supply | 12 VDC (±30%) |
| Power Consumption |
Basic: 2 W (12 VDC) Max.: 14 W (12 VDC) (illuminator intemsity + red and blue active deterrence + speaker on + PT rotation + Wi-Fi pulling stream + WDR) |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +122 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP66 |
| Camera Button | Reset button |
| Casing Material | Plastic |
| Product Dimensions | 125.4 mm × 110 mm × 140.3 mm (4.94" × 4.37" × 5.52") (L × W × H) |
| Net Weight | 0.4 kg (0.88 lb) |
