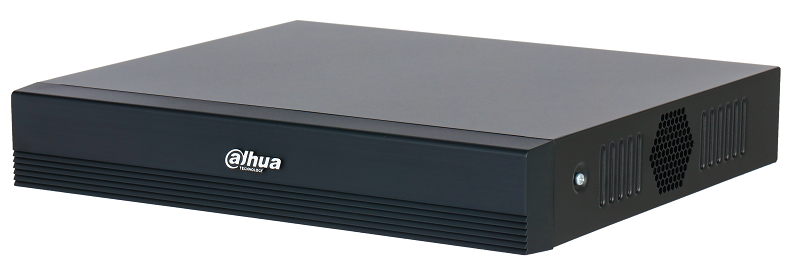

DH-XVR1B16-I/T
16-канальный HDCVI-видеорегистратор c SMD, Формат видеосигнала: HDCVI, AHD, TVI, IP, CVBS; отображение: до 1080p; запись: 1кн до 1080N@25к/с, 2-16кн 1080N@15к/с ; кодирование: AI-Coding, H.265+, H.265, H.264+, H.264; IP-каналы: до 18 каналов, до 6Мп; накопители: 1 SATA III до 16Тбайт; видеоаналитика: 16кн интеллектуальный детектор движения SMD Plus, интеллектуальный поиск видеовыходы: 1 HDMI, 1 VGA; сеть: 1 RJ45 100Мбит/с; аудиовх/вых: 1/1, двунаправленная аудиосвязь: 16 HDCVI-каналов; питание: 12В(DC)16-канальный HDCVI-видеорегистратор c SMD, HDCVI, AHD, TVI, IP, CVBS; отображение: до 1080p; запись: 1кн до 1080N@25к/с, 2-16кн 1080N@15к/с ; кодирование: AI-Coding, H.265+, H.265, H.264+, H.264; IP-каналы: до 18 каналов, до 6Мп; накопители: 1 SATA III до 16Тбайт; видеоаналитика: 8кн интеллектуальный детектор движения SMD Plus, интеллектуальный поиск видеовыходы: 1 HDMI, 1 VGA; сеть: 1 RJ45 100Мбит/с; аудиовх/вых: 1/1; питание: 12В(DC)
Производитель: Dahua Technology
- Код:
- 00059689
- Базовая единица
- шт
16CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
- 16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder.
- 16-channel SMD Plus for analog channels or 18-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
- 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
- Supports HDCVI, AHD, TVI, CVBS and IP video input.
- Supports up to 18-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
- Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes.
- Smart H.265+ and H.265 dual-stream video compression.
* Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above
Технические характеристики:
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| SMD | |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | 18 channels |
| Irregular Black Block Masking | |
| Irregular Black Block Masking by Recorder | 1 channel |
| Audio and Video | |
| Analog Camera Input | 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input |
1. CVI: 1080p@25/30 fps; 720p@25/30 fps. 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input |
Up to 18 channels of IPC access 2 IP channel by default + 16 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps |
| Encoding Capacity |
Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–4096 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output |
1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display |
When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |

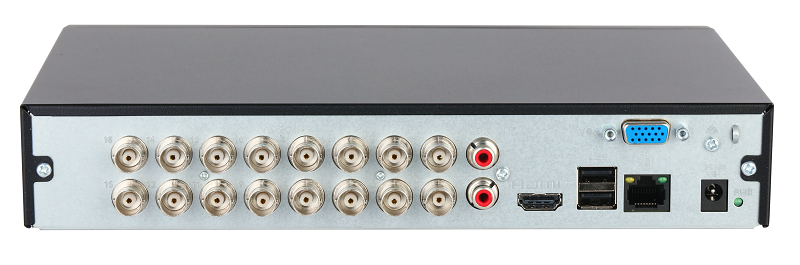

| Ports | |
| Audio Input |
1-channel RCA 16-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk |
Coaxial two-way talk: 16-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
| Disk Interface | 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
| USB | 2 (2 rear USB 2.0 ports) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <10 W (without HDD) |
| Net Weight | 0.96 kg (2.12 lb) |
| Gross Weight | 1.54 kg (3.40 lb) |
| Product Dimensions | 260.0 mm × 231.6 mm × 47.6 mm (10.24" × 9.12" × 1.87") (W × D × H) |
| Packaging Dimensions | 344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H) |
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop |
| Certifications |
CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
