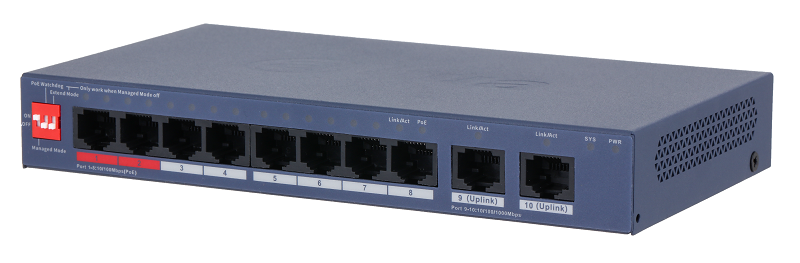

DH-CS4010-8ET2GT-110
8-портовый PoE коммутатор с функцией облачного управления, Порты: 8 RJ45 10/100Мбит/с (PoE/PoE+/Hi-PoE/IEEE 802.3bt), 2 RJ45 10/100/1000Мбит/с (uplink); мощность PoE: порты 1~2 до 90Вт, порты 3~8 до 30Вт, суммарно до 110Вт; PoE watchdog, передача до 250м; питание: 54В(DC)
Производитель: Dahua Technology
- Код:
- 00059955
- Базовая единица
- шт
8 790 руб.
10-Port Cloud Managed Desktop Switch with 8-Port PoE
- 8 × RJ-45 10/100 Mbps PoE ports, 2 x RJ-45 Gigabit ports.
- 110 W total PoE budget, 802.3af/at on all PoE ports, additional 802.3 bt on red ports.
- DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.
- Wide operating temperature ranging from –10 °C to 55 °C.
- Supports VLAN and loop protection.
- WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.
- Easy config to auto detect and set up network and security systems.
Технические характеристики
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Description of Function Slots |
Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External Power Adapter (54 V, 2.22 A) |
| Power Consumption |
Idling: 5.7 W Full load: 115 W |
| Statics Protection |
Air discharge: 8 kV Contact discharge: 6 kV |
| Lightning Protection |
Common mode: 6 kV Differential mode: 1 kV |
| Net Weight | 0.36 kg (0.79 lb) |
| Gross Weight | 1.09 kg (2.03 lb) |
| Product Dimensions |
184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H) |
| Packaging Dimensions |
252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| Certifications | CE |
| PoE | |
| PoE | Yes |
| PoE Power | Port 3-8≤30 W, port 1-2≤90 W, total≤110 W |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| PoE Power Consumption Management | PoE power consumption management; PoE power on/off; turns off PoE if overload is detected |
| PoE Pin Assignment |
Port 1-2: 1,2,4,5 (V+),3,6,7,8 (V-) Port 3-8: 1,2, (V+),3,6, (V-) |
| Long Distance PoE Transmission | Yes |
| Hardware | |
| DIP Switch |
Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode. PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off) Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off) |
| Reset Button | 1 |
| Performance | |
| MTBF | 3,359,638 hours |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 8K |
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | IEEE 802.1Q VLAN |
| Port Feature |
IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control MAC+Port Binding Loop Prevention |
| Mirror |
Local Port Mirroring N:1 Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation |
| Equipment Management |
Web Management Cloud Management Logs Fault Alarm |
| General | |
| Packing List |
1 × User Manual 1 × Legal and Regulatory Information 1 × Power Cord 1 × Power Adapter |
