TC-R3120 2MC
NVR IP видеорегистраторы
IP-видеорегистратор 20 канальный; битрейт 100Мбит/с/80Мбит/с; декодирование камер до 8Мп; однопотоковая запись; подключение сторонних камер по ONVIF (PROFILE S/T), RTSP; 1×SATA III 3.5''; HDD до 10ТБ; дублирующиеся 1×HDMI/1×VGA; 1×10/100BASE-T; поддержка аналитики камер Tiandy; аудио интерфейсы; без тревожных интерфейсов

TC-R3120 2MC

IP-видеорегистратор 20 канальный; битрейт 100Мбит/с/80Мбит/с; декодирование камер до 8Мп; однопотоковая запись; подключение сторонних камер по ONVIF (PROFILE S/T), RTSP; 1×SATA III 3.5''; HDD до 10ТБ; дублирующиеся 1×HDMI/1×VGA; 1×10/100BASE-T; поддержка аналитики камер Tiandy; аудио интерфейсы; без тревожных интерфейсов

Производитель: Tiandy

Код:
00060643
Бренд:
Tiandy SK Series
Базовая единица
шт
В наличии:
2
14 590 руб.

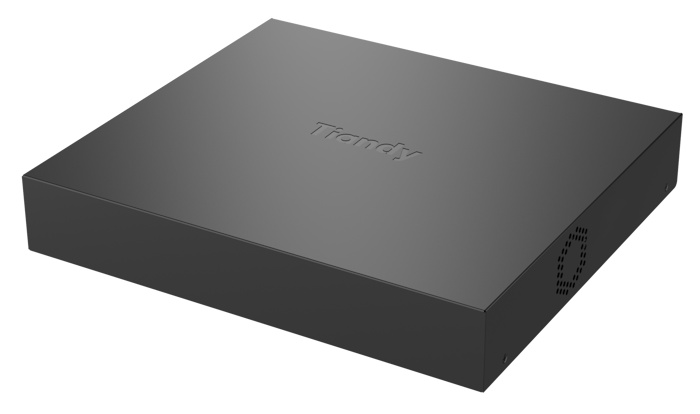

TC-R3120 2MC IP-видеорегистратор 20 канальный

  • Битрейт 100Мбит/с/80Мбит/с
  • Декодирование камер до 8Мп
  • Однопотоковая запись
  • Подключение сторонних камер по ONVIF (PROFILE S/T), RTSP
  • 1×SATA III 3.5''; HDD до 10ТБ
  • Дублирующиеся 1×HDMI/1×VGA
  • 1×10/100BASE-T
  • Поддержка аналитики камер Tiandy
  • Аудио интерфейсы
  • Без тревожных интерфейсов

Технические характеристики

Video and Audio
Access Channel 20
Incoming Bandwidth 100Mbps
Outgoing Bandwidth 80Mbps
Resolution 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×20
Playback Decoding Capability 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×16
Third-party Camera Access ONVIF(Profile S/T); RTSP
HDMI Output HDMI: 1024×768(60Hz),( 68365793,720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1440×900(60Hz),( 68365794,1080P)1920×1080(50Hz/60Hz),( 68365795,2K)2560×1440(30Hz),( 68365796,4K)3840×2160(30Hz)
VGA Output VGA: 1024×768(60Hz),( 68365797,720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz),1440×900(60Hz),( 68365798,1080P)1920×1080(50Hz/60Hz)
Multi-screen Display Simultaneous Output: VGA: 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/20C/20D/25 HDMI: 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/20C/20D/25
Audio Input 1-ch, 3.5mm
Compression Standard
Video Compression S+265; H.265; S+264; H.264
Audio Compression G.711A; G.711U; AAC; ADPCM_D
Stream Type Video; Video & Audio
Network
Network Protocol 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast; UPnP
Moblie Client EasyLive Plus (Android, iOS)
System Compatibility ONVIF(Profile S/T/G); RTSP; CGI; SDK; P2P
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Recording Playback
Multi-channel Playback 16
Record Mode Manual Recording; Alarm Recording; Schedule Recording
Storage Method Local HDD
Backup USB storage device, Network
Playback Function Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay
Alarm
General Alarm Motion Detection; Mask Alarm; Alarm Input(IPC)
Exceptions Alarm Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict; Disk Overload
Intelligent Analytics
AI by Camera Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Heatmap; Loitering; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Safety Helmet Detection; Electric Bicycle Detection; People Counting; Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement; Smart Alarm; Human/Vehicle Classification
VCA Search Early-warning Search; Behavior Search; Safety Helmet Search; Thermographic Retrieval; Duty Search; Electric Bicycle Retrieval; Face Search(Search by face attributes)
VCA Report Heatmap; People Counting; Face Statistics
Face Detection
Face Attributes Search Gender; Age; Glasses; Face Mask; Body Temp.
Storage
HDD Capacity Up to 10 TB capacity for each HDD
Disk Group 1 Disk Group
External Port
USB 2×USB2.0
HDMI 1×HDMI(supports up to 4K resolution output)
VGA 1×VGA
Network Interface 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
SATA 1×SATA interface
General
UI Language Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian; Indonesian; Greek
Power Supply DC12V
Power Consumption <10W(HDD not included, idling)
NetWeight 0.8 kg
GrossWeight 1.45 kg
Boundary Dimensions 250(L)229(W)45(H)mm
Package Dimensions 385(L)80(W)280(H)mm
Operating Temperature -10℃~+55℃ (+14℉~+131℉)
Operating Humidity 10%~90%RH (non-condensing)
Storage Temperature -20℃~+60℃ (-4℉~+140℉)
Package Kit Network Video Recorder*1; Screw Pack*1; Mouse*1; Power Adapter(DC12V 3A)*1; European Standard Power Cord*1; Instructions*1; Parts List*1
