DH-CHS4206-4ET-60
DH-CHS4206-4ET-60

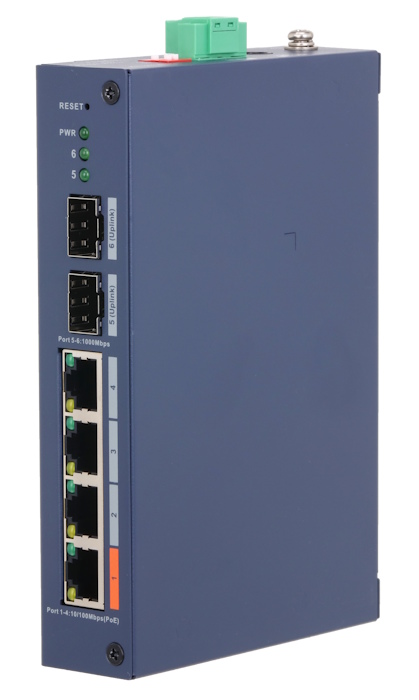

4-портовый PoE коммутатор с функцией облачного управления, Порты: 4 RJ45 10/100Мбит/с (PoE/PoE+/Hi-PoE), 2 SFP 1000Мбит/с (uplink); мощность PoE: порт 1 до 60Вт, порты 2~4 до 30Вт, суммарно до 60Вт; PoE watchdog, передача до 250м; питание: 48~57В(DC); грозозащита: до 6кВ; рабочая температура: -30°С~+65°С; IP30, IK06; монтаж на DIN-рейку
Производитель: Dahua Technology
- Код:
- 00060893
- Бренд:
- Dahua
- Базовая единица
- шт
- Доступность:
- заказная
10 990 руб.
6-Port Cloud Managed Hardened Switch with 4-Port PoE
- Features managed mode.
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab and IEEE802.3z standards.
- Supports network topology visualization.
- Supports mobile management by app.
- Supports one-stop maintenance.
- With its full metal design and dust-proof enclosure, it can be used in a wide range of temperatures.
- Supports desktop mount and DIN rail mount.
Технические характеристики
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 4.8 Gbps |
| Packet Forwarding Rate | 3.57 Mpps |
| Description of Function Slots |
Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × SFP 1000 Mbps (uplink) |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Protection | IP30;IK06 |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External dual power supply (terminal block and DC): 48–57 VDC, 1.354–1.14 A |
| Power Consumption |
Idling: 1.3 W Full load: 65 W |
| Statics Protection |
Air discharge: 8 kV Contact discharge: 6 kV |
| Lightning Protection |
Common mode: 4 kV Differential mode: 2 kV |
| Net Weight | 0.32 kg (0.71 lb) |
| Gross Weight | 0.87 kg (1.92 lb) |
| Product Dimensions | 154.3 mm × 110.4 mm × 30 mm (6.07" × 4.35" × 1.18") (L × W × H) |
| Packaging Dimensions | 266 mm × 239 mm × 77 mm (10.47" × 9.41" × 3.03") (L × W × H) |
| Casing Material | Iron |
| Installation | DIN rail mount; desktop mount |
| Certifications | CE |
| PoE | |
| PoE | Yes |
| PoE Power | Port 2-4≤30 W, port 1≤60 W, total≤60 W |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE |
| PoE Power Consumption Management | PoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoE |
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) |
| Long Distance PoE Transmission | Yes |
| Hardware | |

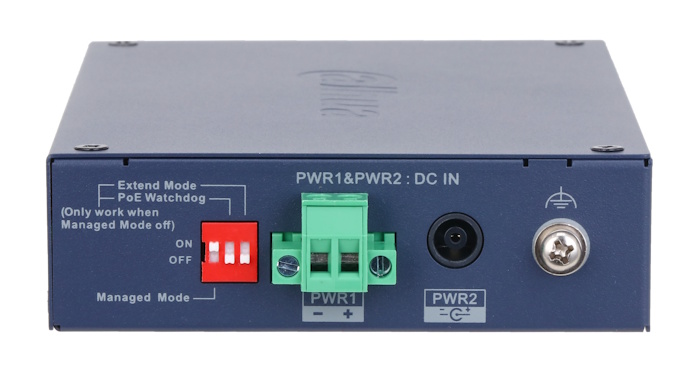

| DIP Switch |
Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default. Extend mode: The transmission distance of ports 1–4 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps. PoE Watchdog: Monitors the flow of data traffic for ports 1–4. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted. |
| Reset Button | 1 |
| Performance | |
| MTBF | 2,020,305.28 hours |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 8K |
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | Port-based VLAN |
| Port Feature |
IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control Port Self-loop Detection |
| Mirror |
Local Port Mirroring N:1 Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation |
| Equipment Management |
Web Management Cloud Management Logs Fault Alarm |
| General | |
| Packing List |
1 × User Manual 1 × Legal and Regulatory Information 1 × Power Cord 1 × Power Adapter 1 × Terminal Block |
