DHI-KTW02
DHI-KTW02

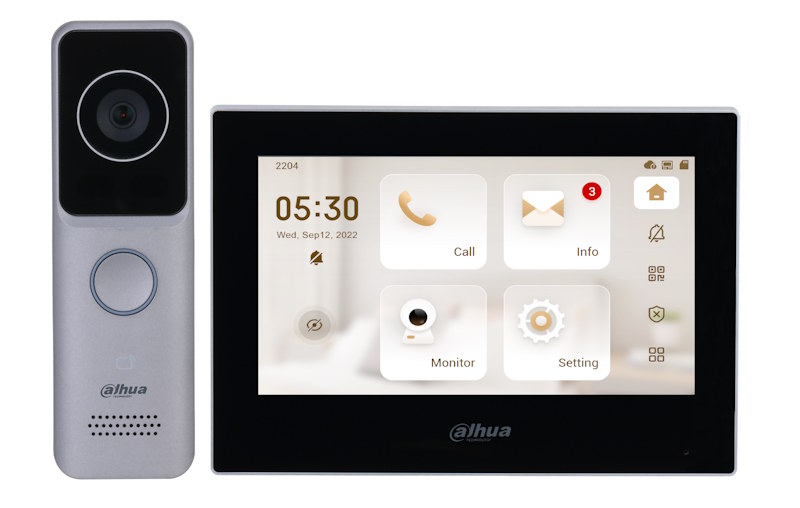

Комплект видеодомофона DHI-VTO2311R-WP + DHI-VTH2621G-WP Wi-Fi панель DHI-VTO2311R-WP, 2-МП HD CMOS-камера, Wi-Fi 2,4 ГГц, 1 порт Ethernet RJ-45 10/100 Мбит/с, считыватель IC-карт, кнопка выхода, Micro SD (макс. 256 ГБ), –40...+60 °C, 160х50х30 мм. Wi-Fi монитор DHI-VTH2621G-WP, 7" емкостный сенсорный ЖК-экран, 1024×600, подключение Wi-Fi, 6 тревожных входов, 1 тревожный выход, 1 RJ-45 (10 Мбит/с, 100 Мбит/с), -10...+55 °C, 190х135х26 мм.
Производитель: Dahua Technology
- Код:
- 00060955
- Бренд:
- Dahua
- Базовая единица
- шт
- Доступность:
- заказная
29 490 руб.
- DHI-VTO2311R-WP + DHI-VTH2621G-WP
- 7-inch Screen VTH
- Plastic VTO
- Wi-Fi Connection
- App Management
Технические характеристики
| DHI-VTO2311R-WP | |
| System | |
| Main Processor | Embedded Processor |
| Button Type | Mechanical |
| Interoperability | ONVIF; CGI |
| Network Protocol | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
| Basic | |
| Camera | 1/2.8" CMOS 2-MP HD camera |
| Field of View | H: 110°; V: 62°; D: 133° |
| WDR | 120 dB |
| Noise Reduction | 3D NR; 2D NR |
| Video Compression | H.264; H.265 |
| Video Resolution |
Main stream: 720p, WVGA, D1, and CIF Sub stream: 1080p, WVGA, D1, QVGA, and CIF |
| Video Frame Rate |
PAL: 25 fps NTSC: 30 fps |
| Video Bit Rate | 768 kbps–8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto (ICR)/Color/B/W; Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction;Echo suppression; Digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Card; app; indoor monitor |
| Card Type | IC card |
| Auto Snapshot | Yes (SD card is inserted in the indoor monitor or door station) |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| Web Configuration | Yes |
| Wi-Fi | Yes |
| Wireless Standard | IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Storage | Micro SD card (max. 256 GB) |
| Performance | |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
| Issue Card Locally | Yes |
| Casing | PC + ABS |
| Capacity | |
| Card Capacity | 3000 |
| Port | |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | 1 × RJ-45 10/100 Mbps Ethernet port |
| Alarm | |
| SOS | Yes |
| General | |
| Appearance color | Light grey |
| Power Supply | 12–33 VDC, 1 A ;Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | CE; FCC |
| Accessory | Included: Alarm power ribbon cable, rain cover |
| Product Dimensions | 160 mm × 50 mm × 30 mm (6.30" × 1.97" × 1.18") |
| Protection | IP65 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.51 ft) |
| Power Consumption | ≤ 3.5 W (standby), ≤ 6 W (working) |
| Gross Weight | 0.4 kg (0.88 lb) |
| Net Weight | 0.18 kg (0.40 lb) |
| DHI-VTH2621G-WP | |
| System | |
| Main Processor | Embedded processor |
| Network Protocol | RTSP; RTP; SIP; DNS; SSH |
| Basic | |
| Screen Type | Capacitive touchscreen |
| Display | 7" TFT |
| Screen Resolution | 1024 × 600 |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way Audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16 kHz; 16 bit |
| Function | |
| Communication Mode | Full digital |
| Information Release | Receive and view text information released by the management center |
| DND Mode | Do not disturb period can be set; Do not disturb mode |
| Number of Extensions |
Villa: 9 Apartment: 4 |
| Wi-Fi | Yes |
| Wireless Standard | IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Wireless Security Encryption | WPA/WPA2; WPA-PSK/WPA2-PSK |
| Performance | |
| Casing | PC + ABS |
| Port | |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Power Output | 1 (12 V/200 mA) |
| Door Bell | Yes (use any alarm input port) |
| Network | 1 × RJ-45 10/100 Mbps Ethernet port |
| Alarm | |
| SOS | Yes |
| General | |
| Color | Black |
| Power Supply |
12 VDC 1A Standard PoE |
| Installation | Surface Mount |
| Certifications | CE; FCC |
| Accessory | Bracket and alarm ribbon cable (included) |
| Dimensions | 189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–95% RH (non-condensing) |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.51 ft) |
| Power Consumption | ≤2 W (standby); ≤6 W (working) |
| Net Weight | 0.34 kg (0.74 lb) |
| Gross Weight | 0.58 kg (1.27 lb) |
