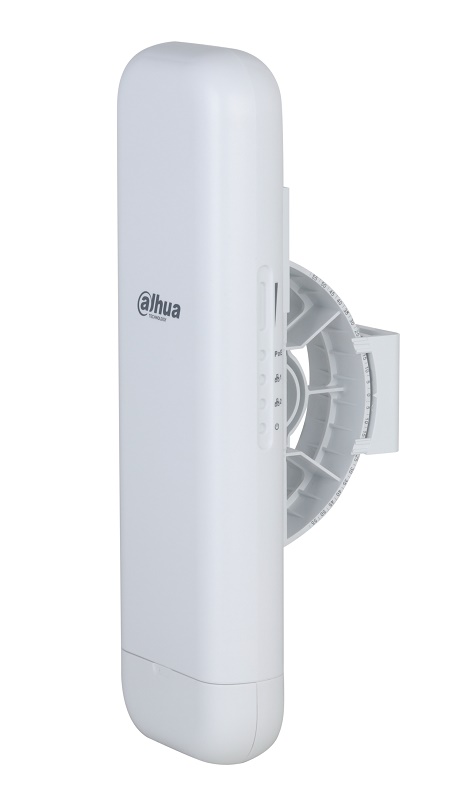

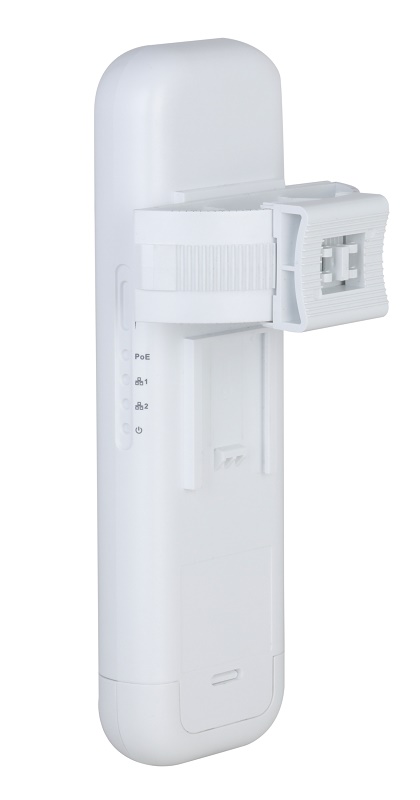

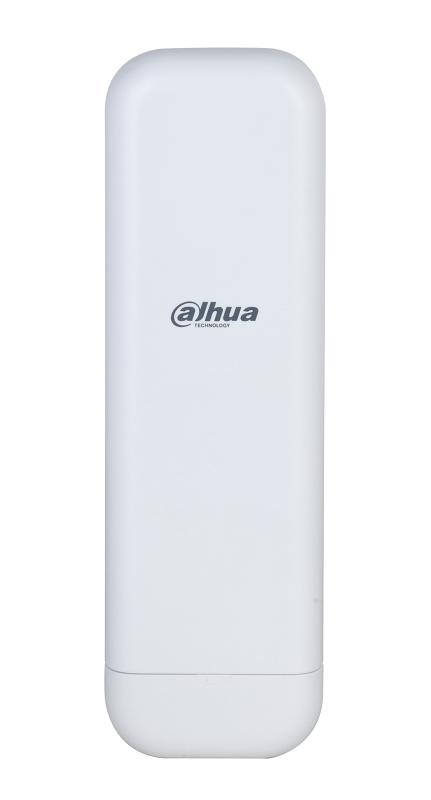

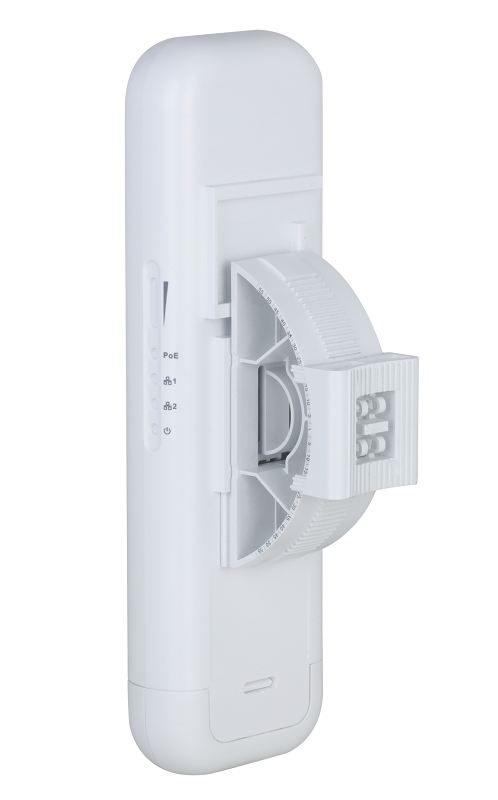

DH-WBC5-90AC-01P
Беспроводной мост 5.8G до 1 км, Порты: 1 × 10/100/1000Мбит/с PoE In; 1 × 10/100Мбит/с PoE out, Стандарты беспроводной связи: 2.4ГГц: 802.11 b/g/n; 5 ГГц: 802.11 a/n/ac, Скорость беспроводной передачи: 2.4 ГГц: 300 Мбит/с; 5 ГГц: 867 Мбит/с, Угол антенны: 90°, Рабочая температура: -35°С~+65°С, Защита: IP65
Производитель: Dahua Technology
- Код:
- 00059710
- Базовая единица
- шт
14 290 руб.
5.8G 1km Wireless Bridge with 802.11ac
- Strong signal: With its enhanced antenna, the peer-to-peer transmission distance reaches up to 1 km (3,280.83 ft).
- Wide operating temperature: –30 °C to +65 °C (–22 °F to +149 °F).
- Easy installation: Supports multiple installation methods such as wall mount and pole mount.
- High protection: IP65 rated, it is suitable for outdoor scenes and withstands severe weather.
- Strong broadband: The bandwidth can reach up to 867 Mbps, ensuring there is no delay in transmission.
Технические характеристики
| Hardware | |
| Sold in Pairs | No |
| Function Slots |
LAN 2: 1 × RJ-45 10/100/1000 Mbps(PoE In); LAN 1: 1 × RJ-45 10/100 Mbps(PoE Out) |
| Power Supply | PoE(802.3 af/at) |
| Power Consumption | < 30 W |
| Antenna | IPEX |
| Memory | DDR 128 MB |
| Indicator Light |
1 × Power indicator; 2 × LAN port indicators; 1 × PoE indicator; 3 × Wireless signal strength indicators |
| External Port |
2 × RJ–45; 1 × Reset |
| Performance | |
| Wireless Standard |
2.4 GHz: 802.11b/g/n; 5 GHz: 802.11a/n/ac |
| Recommended Video Channels | 10-ch 4M |
| Operating Frequency |
2.4 GHz: 2.412 GHz–2.472 GHz; 5 GHz: 5.150 GHz–5.350 GHz |
| Wireless Transmission Rate |
2.4 GHz:300 Mbps; 5 GHz:867 Mbps |
| Channel Width | 20/40/80 MHz |
| Max. Output Power | <20 dBm |
| Antenna Direction Angle | Horizontal: 90°, vertical: 20° |
| Receiver Sensitivity | –96 dBm@11a_20M_6M |
| Polarization | Vertical/horizontal |
| Transmission Distance | 1 km (3,280.83 ft) |
| Connected Wireless Terminals | 8 |
| PoE |
PoE In: 802.3af/at(15W/30W); PoE Out: 802.3af(15W) |
| Function | |
| Operating Mode | Access point; Client |
| Equipment Management |
Web management; App management |
| Network Protocol | HTTPS;IPv4;UDP;NTP;DHCP;TCP |
| Encryption Mode | WPA-PSK/AES/TKIP |
| Security Mechanism | WPA/WPA2; hidden SSID |
| DHCP | Yes |
| Firmware Update | Web update;ConfigTool;App update |
| Software |
Device Management: wireless bridge configuration on the app through WLAN; local web management; cloud management (cloud web and app); quick configuration guide; scanning code to add; Wi-Fi hotspot access cloud; System Management: system log; factory settings; backup restore configuration; import configuration; DMZ; diagnosis and restart; Network Management: DHCP/Static IP configuration; VLAN configuration; LLDP; topology display; Wireless Network Management: 2.4 GHz Wi-Fi access management; working mode selection (access point/client); hide SSID (only access point); wireless output power adjustment; channel selection and channel width configuration; encryption mode configuration (non-encrypted and WPA2-PSK; wireless frame segmentation and aggregation |
| General | |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Storage Temperature | –40 °C to +80 °C (–40 °F to +176 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Net Weight | 0.37 kg (0.82 lb) |
| Gross Weight | 1.16 kg (2.56 lb) |
| Product Dimensions | 268 mm × 82 mm × 35 mm (10.55" × 3.23" × 1.38") (L × W × H) |
| Packaging Dimensions | 299 mm × 139 mm × 111 mm(11.77" × 5.47" × 4.37")(L × W × H) |
| Protection | IP65 |
| Statics Protection |
Air discharge: 15 kV; Contact discharge: 8 kV |
| Lighting Protection |
Common mode: 6 kV; Differential mode: 4 kV |
| Installation | Pole mount |
| Certifications | CE |
| Packing List |
1 × Wireless bridge; 1 × Power cord; 1 × PoE adapter; 1 × Clamp(Φ59 mm to 82 mm); 1 × Antenna adjustment bracket; 1 × Mounting bracket; 1 × Quick start guide; 1 × Legal and regulatory information |
